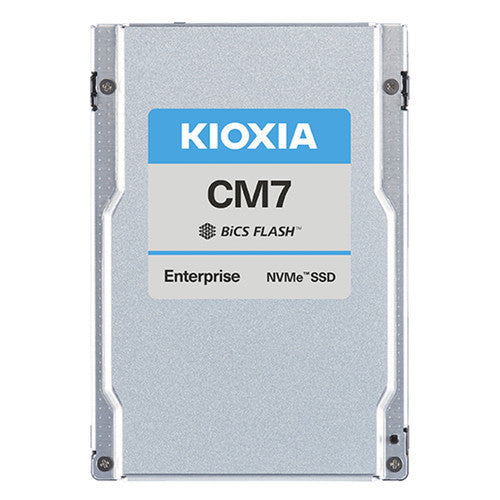

KIOXIA KCMYDRUG3T84 CM7-R 3.84TB 2.5" PCIe NVMe 5.0 x4 SSD SED

KIOXIA CM7-R Series is a read intensive SSD that is optimized to support a broad range of enterprise applications and associated workloads, including business intelligence, online transaction processing, and software defined storage and virtualization. Built on PCIe 5.0 and NVMe 2.0 technology, the CM7 Series SSDs deliver excellent performance up to 2,700K IOPS (random read) and 310K IOPS (random write).

Featuring KIOXIA 112-layer BiCS FLASH 3D TLC flash memory, the CM7-R Series of enterprise NVMe™ SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance and support storage capacities up to 30.72 TB, making them ideally suited for read intensive enterprise applications.

Key Features

• PCIe 5.0, NVMe 2.0 specification compliant
• Open Compute Project Datacenter NVMe SSD specification v2.0 support (not all requirements)
• Form factor: 2.5-inch, 15 mm thickness
• Proprietary KIOXIA architecture: controller, firmware and 112-layer BiCS FLASH 3D TLC
• SFF-TA-1001 conformant (U.3)
• Dual-port design for high availability applications
• High performance with lower power consumption
• Power loss protection (PLP) and end-to-end data protection
• Suited for 24x7 enterprise workloads
• Security options: SIE, SED, FIPS SED

Key Applications

• Software defined storage and virtualization
• Data warehousing
• Online transaction processing (OLTP)
  (transactional and relational databases)
• Business intelligence
• Artificial intelligence and machine learning
