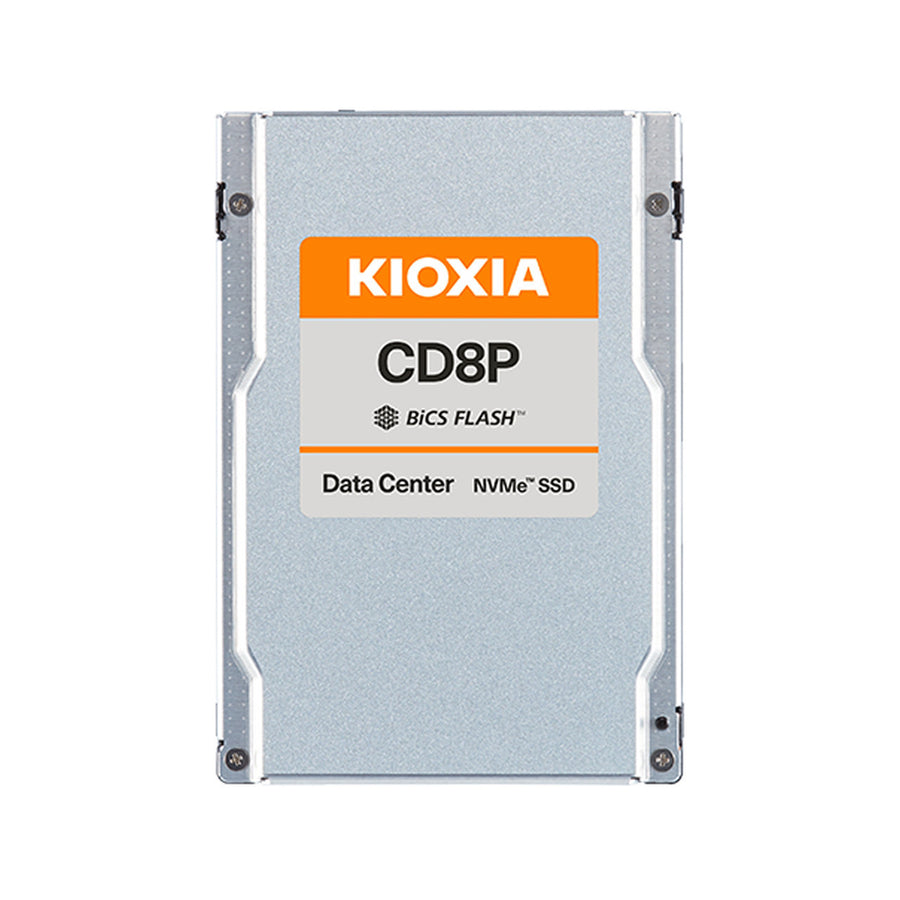

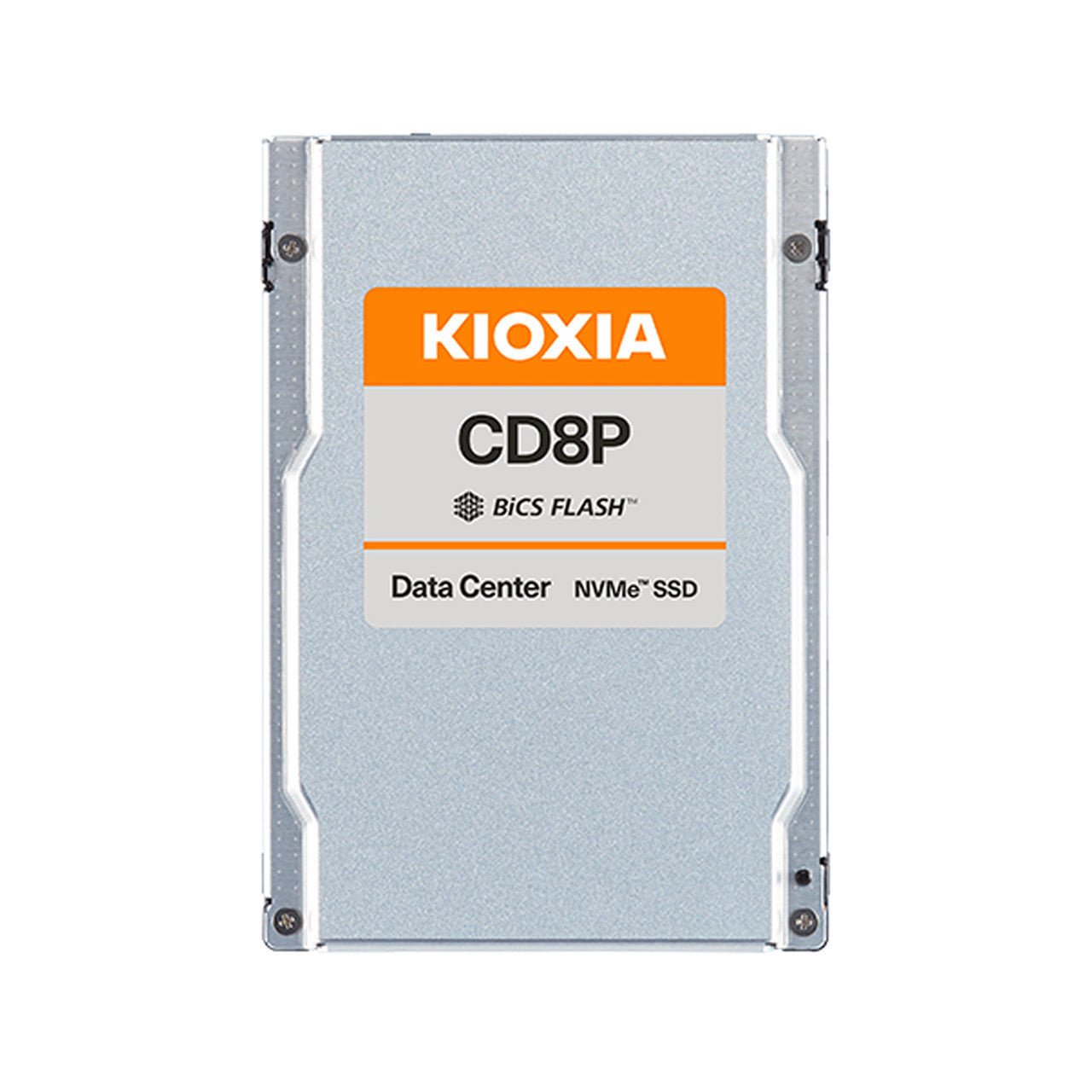

KIOXIA CD8P-R Series (2.5-inch) KCD8XPUG30T7

KIOXIA CD8P-R Series is a read intensive data center NVMe SSD that is optimized to support a broad range of scale-out and cloud applications, including big data/IoT, online transaction processing and virtualization. Built with a PCIe 5.0 (32 GT/s x4) interface, the CD8P-R Series SSDs deliver consistent performance up to 2,000K IOPS (random read) and 200K IOPS (random write), and realize 60 % to 80 % increase in sequential read performance when compared to previous generation PCIe 4.0 SSDs (KIOXIA CD8-R Series).

Featuring KIOXIA BiCS FLASH generation 5 TLC flash memory, CD8P-R 2.5-inch form factor SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 30.72 TB, making them well-suited for hyperscale data center applications.

Key Features

• PCIe 5.0, NVMe 2.0 specification compliant
• Open Compute Project Datacenter NVMe SSD specification v2.0 support (not all requirements)
• Form factor: 2.5-inch, 15mm thickness
• Proprietary KIOXIA architecture: controller, firmware and BiCS FLASH generation 5 TLC flash memory
• Single-port design, optimized for data center class workloads
• Consistent performance and reliability for demanding 24x7 environments
• Designed for high-density storage deployments
• Power loss protection (PLP) and end-to-end data correction
• Security options: SIE, SED
