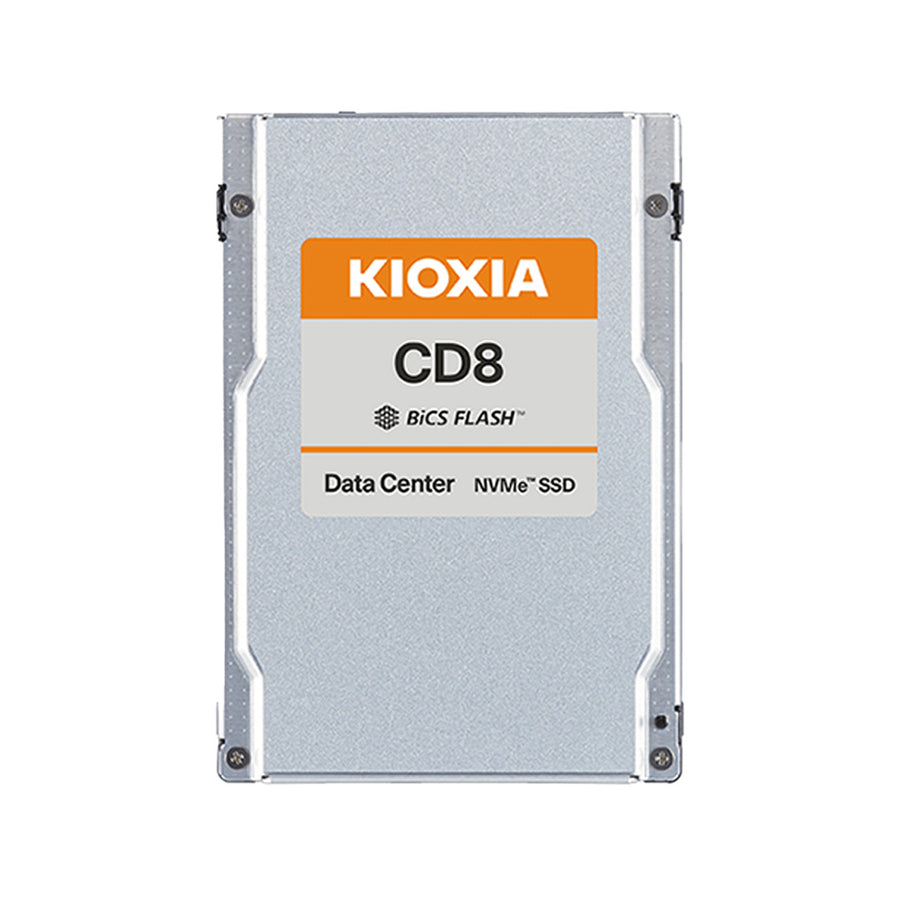

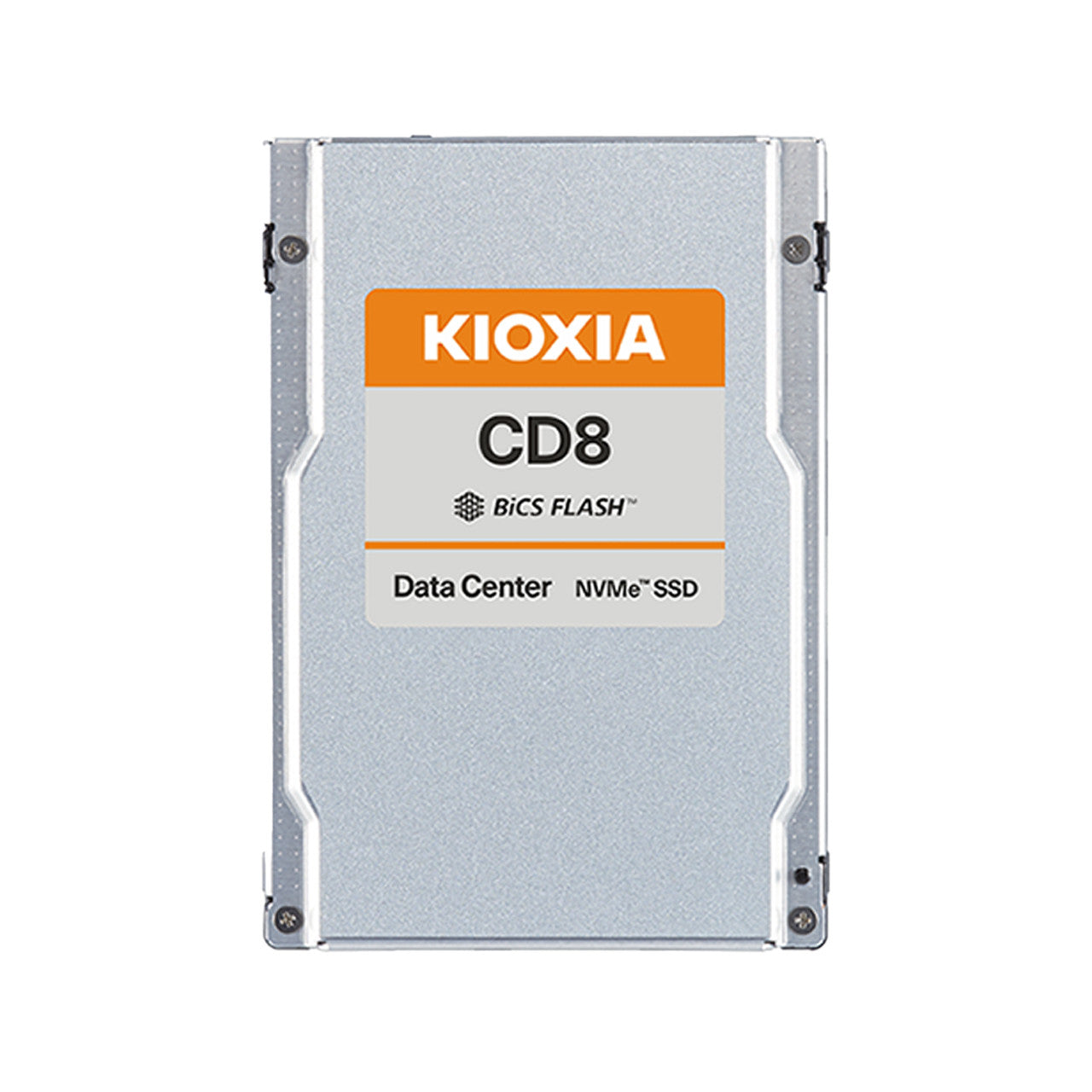

KIOXIA CD8-V Series (2.5-inch) KCD8XVUG1T60

KIOXIA CD8-V Series is a mixed use data center NVMe SSD that is optimized to support a broad range of scale-out and cloud applications, including big data/IoT, online transaction processing and virtualization. Built with a PCIe 4.0 (16 GT/s x4) interface, the CD8-V Series SSDs deliver consistent performance up to 1,250K IOPS (random read) and 380K IOPS (random write).

Featuring KIOXIA 112-layer BiCS FLASH 3D TLC flash memory, the CD8-V 2.5-inch form factor SSDs deliver 3 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 12.8 TB in a 2.5-inch form factor, making them well-suited for hyperscale data center applications.

Key Features

• PCIe 4.0, NVMe 1.4 specification compliant
• Open Compute Project Datacenter NVMe SSD specification v2.0 support (not all requirements)
• Form factor: 2.5-inch, 15mm thickness
• Proprietary KIOXIA architecture: controller, firmware and 112-layer BiCS FLASH 3D TLC
• Single-port design, optimized for data center class workloads
• Consistent performance and reliability for demanding 24x7 environments
• Designed for high-density storage deployments
• Power loss protection (PLP) and end-to-end data correction
• Security options: SIE, SED
