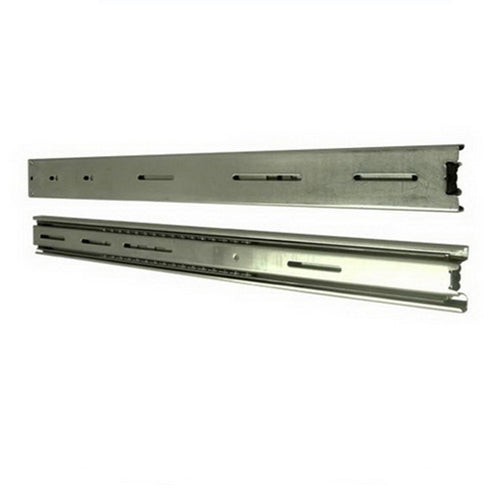

iStarUSA TC-RAIL-20 20inch Sliding Rail
iStarUSA
SKU:
CATCRAIL20
MPN:
CATCRAIL20
Pricing by quote
Request a quote for current pricing & availability.
UPC:
846813012027
Shipping and Returns
Description
Product Overviews
- 1U to 5U height 26in 3-sections Ball-Bearing Slide Rail.Extendable to 38in depth. 26in(L) x 1.79in(H) x 0.5in(Thickness) Standard screws #10-32 & Metric screws M4x6, M5x12 included
- Heavy-Duty 15 gauge cold rolled steel inner, intermediate and outer member, compare to third-party's 10-12 gauge. Ball bearings provide precise linear motion with smooth, silent travel.
- Lock-open to secure the chassis in position for easy access, more tapped screw holes on outer member, easy-mount, quick-disconnect design. Load rating up to 130 Lbs.
- With additional diameter . 4.4mm x 35mm slotted mounting holes (5x), mountable to most chassis (chassis width< =430mm).
Product Specification
| Support | 1U to 4UNorco rackmount cases. |
| Ball | bearing sliding rails. |
| Load rating | up to 130 lbs. |
| Standard screws | #10-32 & Metric screws M4x6, M5x12 included. |
| Extendable | to 38" depth. |
Click for Manufacturer Link
Specifications
Detailed specifications for this part are not yet published. Reach out to your account manager — dimensions, voltage, capacity, and supported configurations will be confirmed within one business day.
