DYNATRON W2

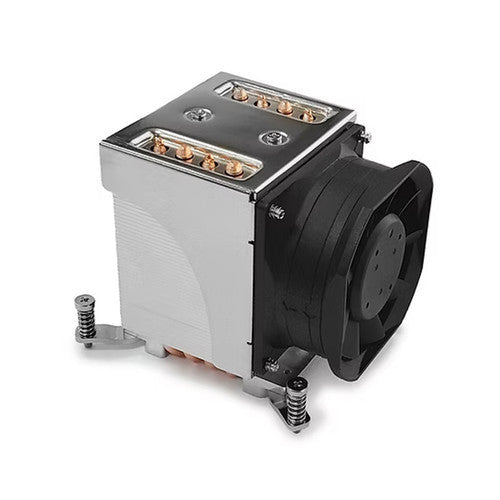

The Dynatron W2 3U Aluminum Contact Heat Pipe Heatsink Base is designed for the LGA 4926 socket, offering superior thermal management. Paired with the ALTRAD8UD-1L2T active CPU cooler, this cooling solution ensures optimal performance and heat dissipation for high-demand server and workstation systems.

• Recommend for LGA 4926 Processor
• Active Air Cooler for 3U Server and Up

Overall Specification

• Material: Aluminum + Direct Contact Heat Pipe Heatsink Base + Aluminum Fins
• Thermal Grease: Shin-Etsu X23-8079-2 Pre-Printed
• TDP: Fully Support 250W at 43℃ Ambient Temperature

Cooling Fan Specification

• Bearing: Double Ball
• Rated Voltage: DC 12V

Rated Speed

• At Duty Cycle 0~20%: 2400± 200 RPM
• At Duty Cycle 50%: 4800± 10% RPM
• At Duty Cycle 100%: 8000±10% RPM

Input Power

• At Duty Cycle 0~20%: 1.2 W
• At Duty Cycle 50%: 5.52 W
• At Duty Cycle 100%: 24.72 W

Maximum Airflow

• At Duty Cycle 0~20%: 32.52 CFM
• At Duty Cycle 50%: 67.24 CFM
• At Duty Cycle 100%: 115.61 CFM

Rated Static Pressure

• At Duty Cycle 0~20%: 3.45 mm-H2O
• At Duty Cycle 50%: 13.6 mm-H2O
• At Duty Cycle 100%: 38.3 mm-H2O

Acoustical Noise

• At Duty Cycle 0~20%: 25.63 dBA
• At Duty Cycle 50%: 47.85 dBA
• At Duty Cycle 100%: 64.40 dBA

Lead Wire Pin Out

• Pin#1- Black(-)
• Pin#2- Yellow(+)
• Pin#3- Green(Tachometer/ Signal Output)
• Pin#4- Blue (PWM)
