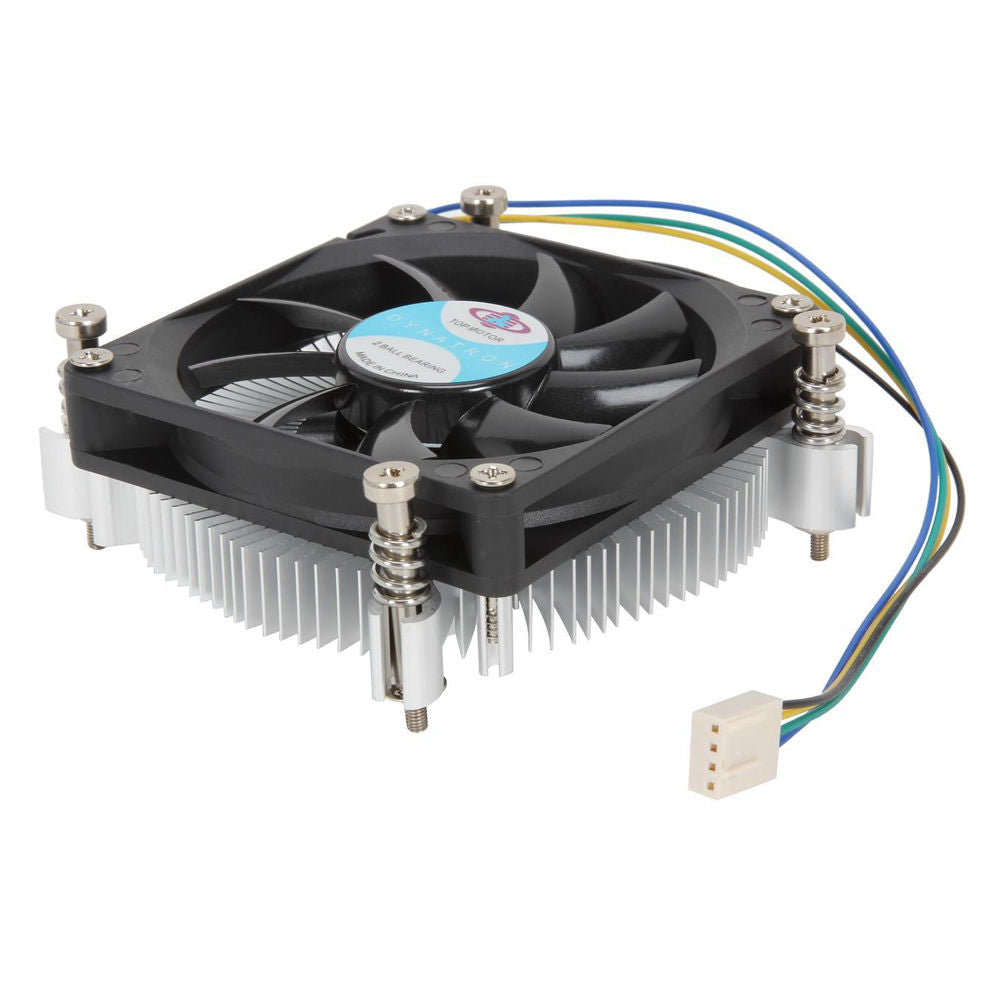

Dynatron T450 low profile cooling fan for Mini ITX Intel LGA1150/1155/1156
DynatronDescription
Product Overviews
Low profile CPU Cooler for Intel LGA 1150, 1155, 1156 Processors (Haswell, Ivy Bridge, Sandy Bridge). Supports Intel Core i3, i5 and i7 processor with a maximum TDP rating of 65W. Low profile design allows for installation in compact enclosures (perfect for Mini-ITX systems). The PWM fan allows for quiet operation under light load and reduces energy consumption. Screw-mounting type with included brackets.. Recommend for Intel® 3rd. Generation Core™ i3 / i5 / i7 Desktop Processors, Socket LGA1155 Previous Generation Core™ i3 / i5 / i7 Desktop Processors, Socket LGA1156 • Active Cooler for Mini-ITX Form Factor ( with Chassis height 2-inchs and up )
Product Specification
| Type | Fan & Heatsinks |
| Fan Size | 80mm |
| Compatibility | LGA 1151 / 1150 / 1155 / 1156 |
| Bearing Type | 2 Ball |
| RPM |
At Duty Cycle 20%: 800 RPM At Duty Cycle 50%: 1500 RPM At Duty Cycle 100%: 2500 RPM |
| Air Flow |
At Duty Cycle 20%: 9.24 CFM At Duty Cycle 50%: 18.48 CFM At Duty Cycle 100%: 30.80 CFM |
| Noise Level |
At Duty Cycle 20%: 16 dBA At Duty Cycle 50%: 22 dBA At Duty Cycle 100%: 27.3 dBA |
| Color | Black |
| Heatsink Material | Aluminum 6063-T5 extruded radial fin heatsink |
| Fan Mounting Types to Heatsink | Vertical |
