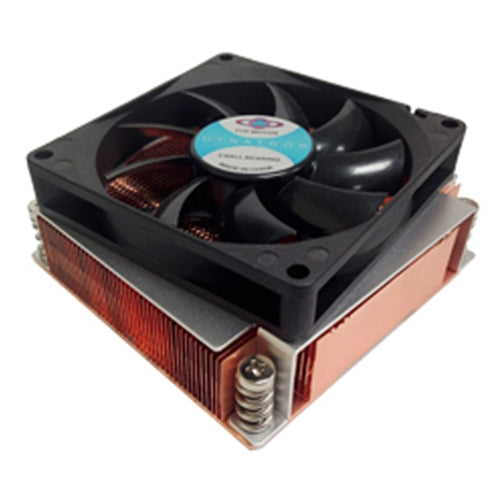

Dynatron R30 1.5U Active CPU Coolers Socket 2011 Intel Xeon Processor
Dynatron
SKU:
CCR30
MPN:
CCR30
$75.99
UPC:
855700013290
Shipping and Returns
Description
Product Overviews
Dynatron R30 1.5U Active CPU Coolers Socket 2011 Intel Xeon Processor Copper Vapor Chamber heatsink with Stacked Fins
Product Specification
| CPU Socket | 2011 (Square Type 80 x 80mm mounting pitch) |
| CPU Support | Intel Xeon Processor E7 v2 Family up to 160 Watts |
| Solution | 2U&Up Server |
| Overall Dimension | 90.0 x 90.0 x 41.5 mm |
| Weight | 480 g |
| Material | Copper Vapor Chamber heatsink with Stacked Fins |
| Fan Dimension | 80 x 80 x 15 mm |
| At Duty Cycle 0-20% | 1000 RPM |
| At Duty Cycle 50% | 2500 RPM |
| At Duty Cycle 100% | 4000 RPM |
| Bearing | 2 Ball Bearing |
| Rated Voltage | 12 V |
| Power | 1.2 W - 5.4 W |
| Air Flow | 9.2 CFM - 48.6 CFM |
Click for Manufacturer Link
Specifications
Detailed specifications for this part are not yet published. Reach out to your account manager — dimensions, voltage, capacity, and supported configurations will be confirmed within one business day.
