DYNATRON N6

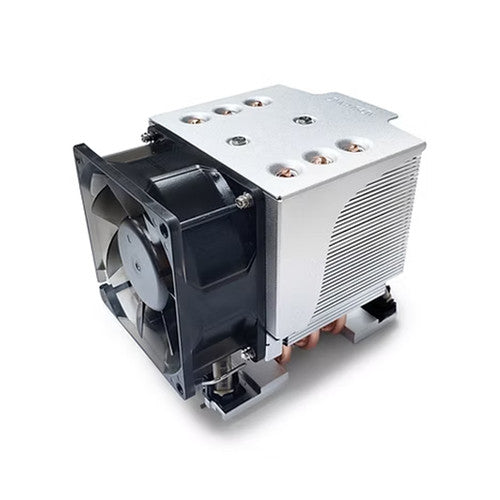

The Dynatron N6 3U Active Cooler is designed for optimal cooling performance with its aluminum stacked fins and advanced heat pipe technology. Compatible with Intel Xeon Scalable Processors FCGA4189-4/5 and Socket P4/P5, this high-efficiency cooler ensures superior heat dissipation to maintain system stability. Ideal for high-performance servers and workstations, the Dynatron N6 delivers reliable thermal management to enhance the longevity and reliability of your critical components. Perfect for demanding environments, this cooler guarantees efficient and consistent cooling for Intel Xeon processors

• Intel Ice Lake and Cooper Lake Server Processors, Socket FCLGA4189-4 / -5 (Socket P4 / P5 or P+)
• Active Cooler for 3U Server and up

Overall Specification

• Fan: 8038 Side-blow Fan with PWM function
• Material: Aluminum Stacked-fin with Heat Pipes directly contact CPU
• Mounting: Convenient Heat Sink screw captive mounting
• Package Carrier: Included
• Thermal Grease: Shin-Etsu 7762 or Equivalent
• TDP: Support CPU Power up to 270 Watts Heat Dissipation

Fan Specification

• Bearing: Double Ball
• Rated Voltage: 12V

Rated Speed

• At Duty Cycle 0~20%: 800 ± 200 RPM
• At Duty Cycle 50%: 1500 ±15% RPM
• At Duty Cycle 100%: 3000 ± 10% RPM

Input Power

• At Duty Cycle 0~20%: 0.48 W
• At Duty Cycle 50%: 0.84 W
• At Duty Cycle 100%: 2.88 W

Maximum Airflow

• At Duty Cycle 0~20%: 13.67 CFM
• At Duty Cycle 50%: 25.63 CFM
• At Duty Cycle 100%: 51.26 CFM

Rated Static Pressure

• At Duty Cycle 0~20%: 0.402 mm-H2O
• At Duty Cycle 50%: 1.41 mm-H2O
• At Duty Cycle 100%: 5.66 mm-H2O

Acoustical Noise

• At Duty Cycle 0~20%: 13.45 dBA
• At Duty Cycle 50%: 27.1 dBA
• At Duty Cycle 100%: 42.15 dBA

Lead Wire Pin Out

• Pin#1- Black(-)
• Pin#2- Yellow(+)
• Pin#3- Green(Tachometer/ Signal Output)
• Pin#4- Blue (PWM)
