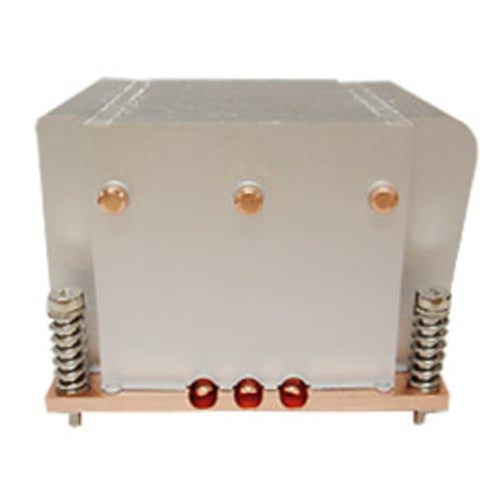

Dynatron G618 2U Passive CPU Cooler for Intel Socket 1366
DynatronDescription
MANUFACTURER LINK : www.dynatron-corp.com
PRODUCT OVERVIEWS:
Recommend for Intel Xeon 5500 Series Nehalem EP Processor Model# W5580, X5570, X5560, X5550, E5540, E5530, E5520, E5506, E5504, E5502, L5520, L5506
Socket LGA1366
Passive cooler for 2U Servers & Up
Dimension: 90.0 x 90.0 x 64.0mm
Weight: 490g
Material: Copper Base with Aluminum Stacked Fin plus 3 Heat Pipes
Back Plate is not included
Thermal Grease Pre-Printed with GE-Toshiba TIG830SP
Support CPU Power up to 130 Watts, with Rca 0.200 C/W refer to 30CFM wind tunnel air flow
MANUFACTURER PARTS NUMBER: G618
PRODUCT SPECIFICATION:
| CPU Socket | 1366 | |
| CPU Support | Intel Xeon 5600 series Westmere Processor X5680, X5677, X5670, X5667, X5660, X5650, E5645, E5640, E5630, E5620, L5640, L5638, L5630, L5618, L5609 & 5500 Series Nehalem EP Processor W5580, X5570, X5560, X5550, E5540, E5530, E5520, E5506, E5504, E5502, L5520, L5506, L5518, L5508 | |
| Solution | 2U | |
| Overall Dimension | 90.0 x 90.0 x 64.0 mm | |
| Material | Aluminum Stacked Fin with Heat Pipes and Copper Base | |
| Note | 1. Backplate is not included 2. RoHS Compliance |
