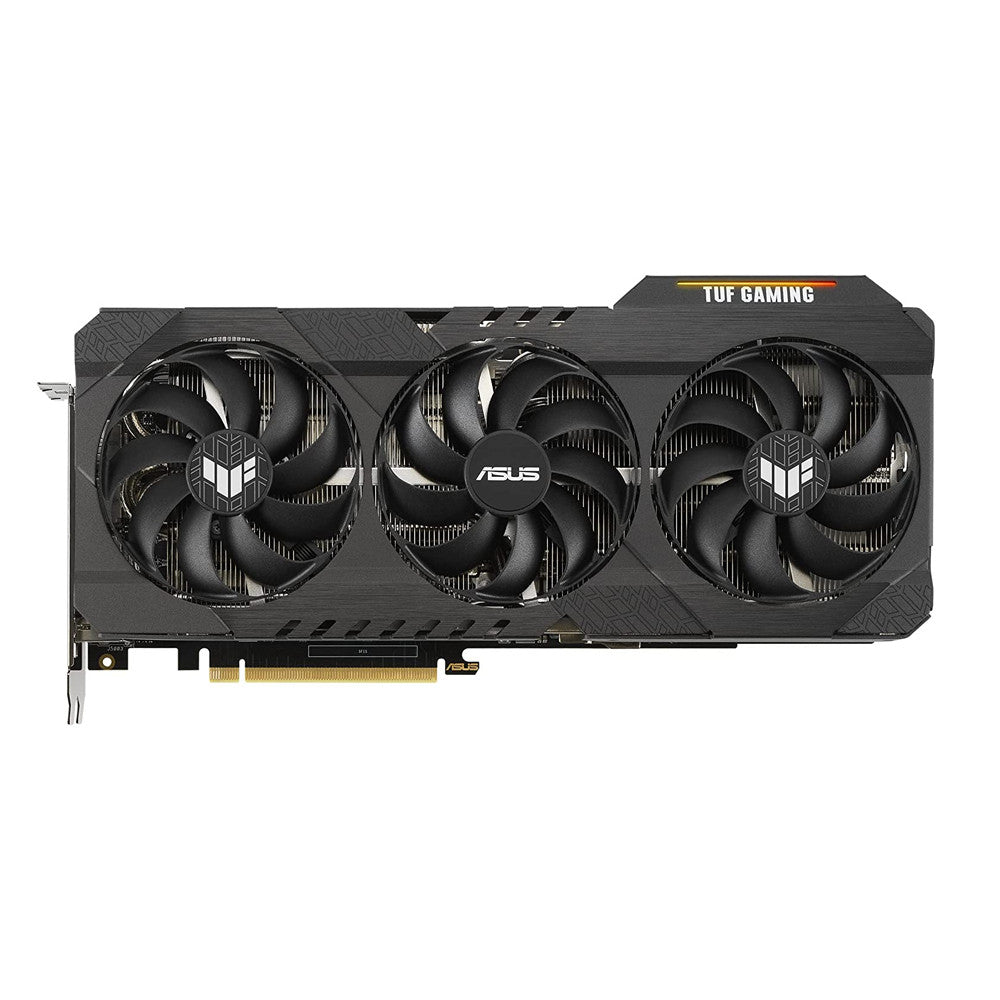

ASUS TUF-RTX3070TI-O8G-V2-GAMING TUF Gaming GeForce RTX 3070 Ti OC V2 Graphics Card PCIe 4.0, 8GB GDDR6X, HDMI 2.1, DP 1.4a

TUF Gaming GeForce RTX™ 3070 Ti V2 OC Edition 8GB GDDR6X offers a buffed-up design that delivers chart-topping thermal performance

• NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world’s fastest, most efficient GPUs, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.
• 2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.
• 3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. These cores deliver a massive boost in game performance and all-new AI capabilities.
• OC edition: Boost clock 1815 MHz (OC mode)/ 1785 MHz (Default mode)
• Axial-tech fan design has been newly tuned with a reversed central fan direction for less turbulence.
• Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
• Military-grade capacitors and other TUF components enhance durability and performance.
• GPU Tweak III provides intuitive performance tweaking, thermal controls, and system monitoring.

FANS
Axial-tech Upgrades

TUF Gaming cards leverage our tried-and-true Axial-tech fan design, with three fans working in tandem to satisfy the thermal demands of NVIDIA’s new high-octane design. The fans rely on dual ball fan bearings to ensure consistent performance and increased longevity compared to sleeve bearings and other bearing types.

FANS
New Directions

The two side fans spin counterclockwise to reduce turbulence. And to eliminate unnecessary noise, a stop mode halts all fans when the GPU temp falls below 50 degrees and power consumption is low.

HEATSINK
MaxContact

To get heat into the heatsink array efficiently, so that it can be whisked away by the powerful Axial-tech fans, we use a manufacturing process that improves the surface smoothness of the heatspreader at the microscopic level. The extra flatness allows for better contact with the die, helping to enhance thermal transfer.

PCB
TUF Components

Components are selected for TUF Gaming graphics cards based on their durability and performance. In addition to top-shelf chokes and MOSFETs, capacitors that meet military-grade certification make the TUF stand tall amongst the competition. The components are soldered to the PCB using our advanced Auto-Extreme automated manufacturing process. Smooth joints on the rear of the PCB and the elimination of human errors ensure each graphics card meets our rigorous specifications. Finally, to ensure flawless performance when it counts, the cards are subjected to a grueling 144-hour validation trial.
* For illustration only

DESIGN
Fresh Shroud

An all-aluminum shroud adds robust protection to TUF Gaming graphics cards and a no-nonsense industrial design and grayscale colorway fits into any build with ease.

DESIGN
It’s Cooler Out Back

The underside of the card reveals a host of improvements. Most of the rear is swathed in a protective metal backplate that prominently features a wide vent. The vent allows hot air to escape towards chassis exhaust fans instead of being recycled back into the cooler. Beneath the GPU, a bracket provides consistent mounting pressure between the die and heat spreader. Stainless steel is used for the I/O bracket to protect ports and provide a more secure mount. A conveniently placed Dual Bios switch allows customization of the card’s default performance profile without software.

DESIGN
Functional Front

The top-side RGB element can be customized to display a range of aesthetic and functional effects and also synced with other ASUS components to enable uniform lighting. To fulfill the power demands of the GeForce RTX 3070 Ti, two 8-pin connectors are present, along with onboard LEDs that light up if PSU PCIe power connectors are not plugged in correctly.
