ROMED8-2T

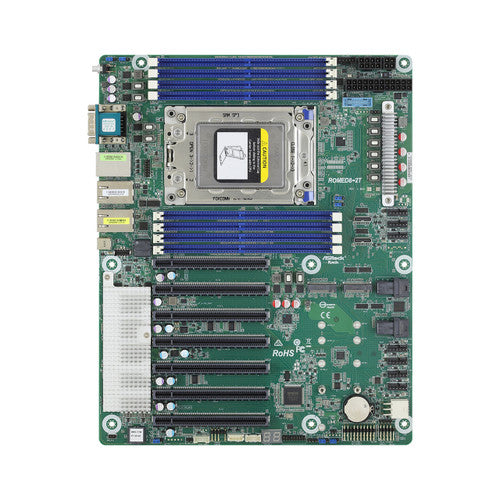

The ASRock Rack ROMED8-2T is a server motherboard that supports AMD EPYC 7003 (with AMD 3D V-Cache Technology*)/7002 series processors. Here are the details of the motherboard:

• Form Factor: ATX (12" x 9.6")
• Processor System: Supports AMD EPYC 7003 (with AMD 3D V-Cache Technology*)/7002 Series processors
• CPU Socket Type: Socket SP3 (LGA 4094)
• Memory: 8 x DIMM slots (1DPC), supports DDR4 RDIMM, LRDIMM, RDIMM/LRDIMM-3DS, NVDIMM-N, and a maximum of 256GB memory
• Expansion Slots: 7 PCIe4.0 x16 slots, 2 OCuLink (PCIe4.0 x4) slots
• Storage: 2 M.2 (PCIe4.0 x4 or SATA 6Gb/s) slots, 10 SATA 6Gb/s slots
• Networking: 2 RJ45 (10GbE) by Broadcom BCM57416, remote management (IPMI)
• Other Connectors: SATA DOM, M.2, COM port, D-Sub video port, USB 3.1 ports
• Onboard Video Chipset: Aspeed AST2500
• LAN Chipset: Intel X550-AT2
• LAN Speed: 10Gbps
• Second LAN Chipset: RTL8211E
• Second LAN Speed: 10/100/1000Mbps
• Max LAN Speed: 10Gbps

The ASRock Rack ROMED8-2T is a versatile and expandable server motherboard that can be used in a variety of applications. The motherboard has 8 DIMM slots that support DDR4 RDIMM, LRDIMM, RDIMM/LRDIMM-3DS, NVDIMM-N, and a maximum of 256GB memory. It also has 7 PCIe4.0 x16 slots, 2 OCuLink (PCIe4.0 x4) slots, 2 M.2 (PCIe4.0 x4 or SATA 6Gb/s) slots, and 10 SATA 6Gb/s slots.
