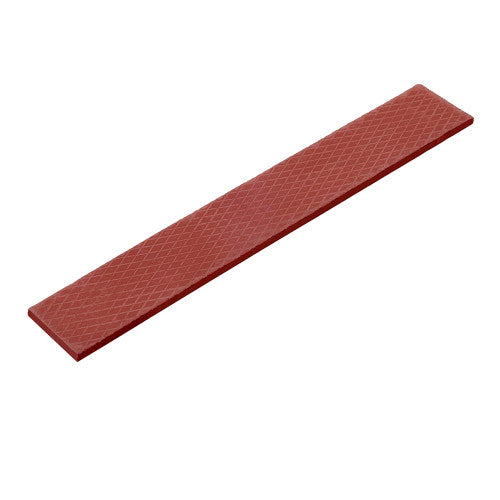

Thermal Grizzly Minus Pad Extreme 120 x 20 x 3.0 (TG-MPE-120-20-30-R)

The thermal pad is silicone based with modelling clay like consistency. This allows a perfect surface shaping with maximum possible compression. The minus pad extreme is electrically insulating.
Due to the consistency only one-time use is recommended. The thermal conductivity was improved by about 260 % over the minus pad 8 which allows best cooling for tough cooling operations such as voltage regulators and memory ICs.

• Most excellent thermal conductivity
• No bleeding
• long-term stability
• high compression rate

within the capabilities of thermal pads
The minus pad extreme is available in size 120 x 20 mm and 100 x 100 mm with thicknesses of 0,5mm, 1mm, 1,5mm, 2mm, 3mm.

Hardness Shore 00 - 65
Thickness0,5–3,0 mm
Typical thickness tolerance± 0,1 mm
Flammability V-0
Electically insulatingJa (8 KV/mm ASTM D149)
Density 3.38 g/cm³
Temperature Range -100 °C / +200 °C
