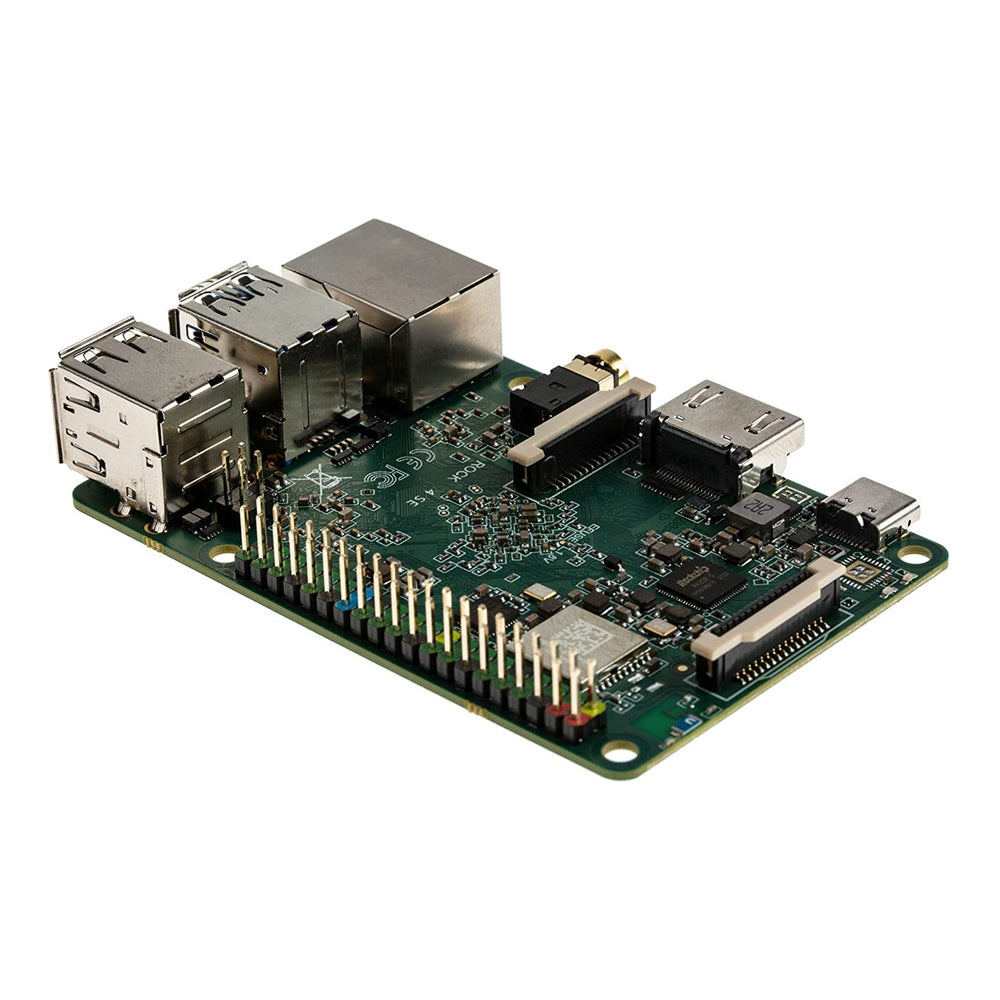

OKdo RS114SE-D4W2P1 ROCK 4 Model SE 4GB Single Board Computer Rockchip RK3399-T Arm Cortex-A72

OKdo

No reviews yet Write a Review
SKU:
CDRS114SED4W2P1
MPN: RS114SE-D4W2P1
$89.99
UPC:
6975225650054
$89.99

Description

Product Overviews

  • ROCK 4 SE - a robust, versatile special edition single-board computer
  • High-performing Hexa-core Rockchip RK3399-T processor
  • Hexa-core processor with big.LITTLE™ Arm® Dual Cortex-A72® CPU, Quad-core Cortex-A53 and Arm Mali™ - T860MP4 GPU
  • Available in a 4GB 64bit LPDDR4 RAM option
  • Expandable with eMMC module or SSD through m.2 connector
  • Onboard RTC, WiFi, Bluetooth, Antenna, Audio jack (headphone and headset), 4K HDMI port

ROCK 4 SE is a reliable and high-performing single-board computer that offers class-leading performance and superior hardware as standard. This special edition board is based on a powerful Rockchip RK3399-T hexa-core processor, big.LITTLE™ Arm® Dual Cortex-A72® CPU, Arm Mali™ – T860MP4 GPU and 4GB 64bit LPDDR4 RAM. With onboard RTC, WiFi, Bluetooth, antenna, audio jack, 4K HDMI port, and many more, ROCK 4 SE is the perfect Raspberry Pi alternative, that provides an incredible performance solid as a ROCK!

Key Benefits of the ROCK 4 SE

Powerful Rockchip processor
A low-power high-performing Rockchip RK3399-T processor is embedded into the heart of the ROCK 4 SE board. Equipped with an Arm® big.LITTLE™ technology Dual Cortex®-A72@1.5GHz, Quad Cortex-A53@1.0GHz CPU, Arm Mali™ – T860MP4 GPU and 4GB 64bit LPDDR4 RAM, be sure that your board will provide a high-performance solid as a ROCK!

Extensive storage capacity
ROCK 4 SE offers you an immense advantage over other competitors’ boards, benefiting from extensive storage capability. It features a Micro SD card, an eMMC and an M.2 (M key), ensuring the board with a tremendous amount of additional storage capacity.

RTC (real-time clock)
The onboard real-time clock allows you to accurately register the time even when the ROCK 4 SE is powered off. The board features an onboard connector for an RTC battery.

Multiple connectivity capabilities
The board offers you multiple connectivity capabilities, including Bluetooth 5.0, WiFi, Gigabit Ethernet, USB and HDMI ports, and a built-in antenna, allowing you to widely incorporate ROCK 4 SE into your applications.

Highly compatible with SBC accessories
ROCK 4 SE features an onboard 40P GPIO extension header, offering extensive compatibility with a wide range of SBC accessories.

Advanced multimedia functions
The ROCK 4 SE is fitted with an Arm Mali™ – T860MP4 quad-core graphics processing unit (GPU), ideal for advanced multimedia applications, including games. The board incorporates camera and display interfaces, an HDMI port supporting displays up to 4Kp60 resolution, a high-quality audio output via a 3.5mm onboard audio jack that supports microphone input as default, and much more.

Specifications

Brand:
OKdo
Weight:
0.10 LBS
SOC:
Rockchip RK3399-T
Processor:
Arm® big.LITTLE™ technology (Dual Cortex®-A72@1.5GHz, Quad Cortex-A53@1.0GHz)
GPU:
Arm Mali™ – T860MP4 GPU, supporting OpenGL ES 1.1 /2.0 /3.0 /3.1 /3.2, Vulkan 1.0, Open CL 1.1 1.2, DX11
Memory:
Dual channel (64bit) 4GB LPDDR4 RAM
Power Req:
USB Type-C™ PD/QC 9-12V
HDMI:
1 x 4k@60fps HDMI
USB:
2 x USB 2.0, 1 x USB 3.0, 1 x USB 3.0 OTG (Switchable)
Audio Ports:
3.5mm jack, analogue stereo output, microphone input
Connectivity:
WiFi 5/BT 5.0, BLE, Gigabit Ethernet
MIPI:
1 x 2 lane DSI/1 x 2 lane CSI
Storage:
Micro SD / M.2 (M key) / eMMC
EMMC:
B2B connector
UARTS:
2 x UART
RTC:
YES (support for external battery)
Software:
ARMv8 Instruction Set, Debian/Ubuntu Linux support, Android 7.1/Android 9.0/Android 10/Android 11 support, GPU-enabled AI stack such as Caffe Hardware access/control library for Linux/Android
Temperature:
Operation Temperature: 0~50 ℃/ Storage Temperature: -20~80 ℃
