Description
Product Overviews
- Plug & Play, Hot Swappable
- LED for Power & HDD Activity
- High Performance Transfer Rate up to 6.0 Gb/s
- Support 4 x 2.5" SATA I/II/III HDDs
- Constructed with metal body, plastic ABS front panel, and metal latch for heavy use
- Support 2.5" HDD/SSD thickness from 9.5 to 12.5mm

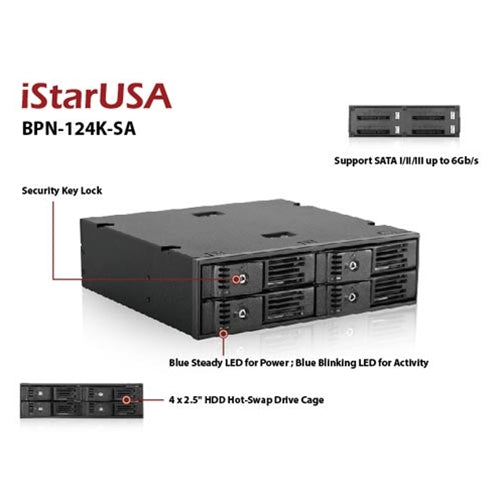

The 2.5" Disk Array BPN-124K-SA to be set up in various configurations as RAID 0, RAID 1, RAID 5 or JBOD as individual drives. The unit is featured with HDD hot-swappable, which can remove or add HDDs to the system without turning off the computers. The back plane connection include SATA connectors and each drive is equipped with power and drive activity LEDs.
Product Specification
| Model Number | BPN-124K-SA |
| RoHS Compliance Version | Yes |
| Form factor | 2.5 U |
| Standard Drive Bays | Hotswap 2.5": 4 5.25" Drives: 1 |
| Hotswap HDD Type: | 2.5" SATA I/II/III |
| Indicators | Power On: solid blue/ HDD Access: blue blinking |
| Security | Key Lock |
| Material of Handle | Plastic with Metal Latch |
| Material of Main Chassis | SECC Steel |
| Color of Main Chassis | Black |
| Dimensions (WxHxD) | 5.83" x 1.65" x 5.59" 148.1 mm x 41.9 mm x 142.0 mm |
| Notes | - not compatible with D Storm chassis on the right 5.25" drive bays when facing the chassis |
