  • Gigabyte Workstation Motherboard - Intel Xeon E-2400, C262 Chipset, DDR5 ECC, Dual 1GbE LAN, microATX MX34-BS0 Rev. 1.x

Gigabyte Workstation Motherboard - Intel Xeon E-2400, C262 Chipset, DDR5 ECC, Dual 1GbE LAN, microATX MX34-BS0 Rev. 1.x

Gigabyte

No reviews yet Write a Review
SKU:
CSMX34BS0
MPN: MX34-BS0
$299.99
Gigabyte Workstation Motherboard - Intel Xeon E-2400, C262 Chipset, DDR5 ECC, Dual 1GbE LAN, microATX MX34-BS0 Rev. 1.x
Shipping and Returns
$299.99

Description

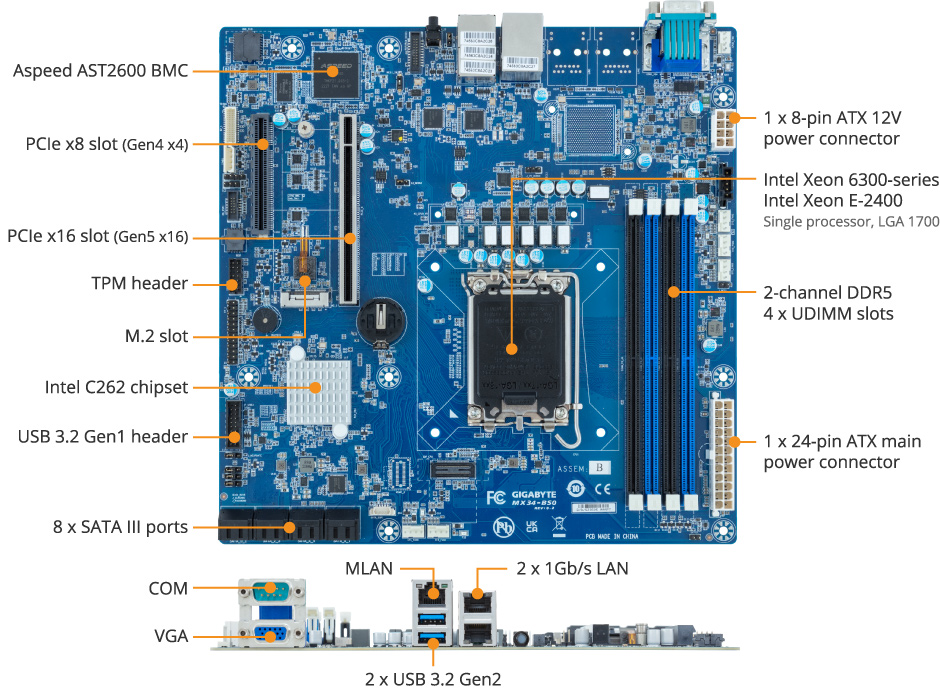

MX34-BS0 Rev. 1.x (Datasheet PDF)

Motherboard - Intel Xeon E-2400 - microATX UP

  • Single Intel Xeon E-2400 Processors
  • Single Intel Pentium Gold G7400 / G7400T Processor
  • Dual Channel DDR5 ECC UDIMM, 4 x DIMMs
  • Intel C262 Chipset
  • 2 x 1Gb/s LAN ports via Intel I210-AT
  • 8 x SATA 6Gb/s ports
  • 1 x M.2 slot with PCIe Gen4 x4 interface
  • 1 x PCIe Gen5 x16 expansion slot
  • 1 x PCIe Gen4 x4 expansion slot

Specifications

Brand:
Gigabyte
Weight:
14.75 LBS
Form Factor:
microATX
CPU:
Intel Xeon E-2400 Processors Intel Pentium Gold G7400 / G7400T Processor
Number of CPU Sockets:
1
Chipset:
Intel C262 Chipset
LAN Speed:
1Gb/s
LAN Ports:
2
Number of DIMM Slots:
6
Socket Type:
LGA 1700
RAM Slots:
2-Channel DDR5 memory
Memory slots:
6 x DIMM slots
Memory Type & Speed:
DDR5 memory supported only DIMM modules up to 32GB supportedECC / non-ECC UDIMM modules supported onlyUp to 4400MHz(1DPC), 4000MHz(2DPC/1R), 3600MHz(2DPC/2R)
Management Port:
1 x Dedicated management port
Expansion Slots:
1 x PCIe x16 (Gen5 x16) slot1 x PCIe x8 (Gen4 x4) slot1 x M.2 slot: M-key, PCIe Gen4 x4, supports 2280 cards
Video Integrated:
Yes
