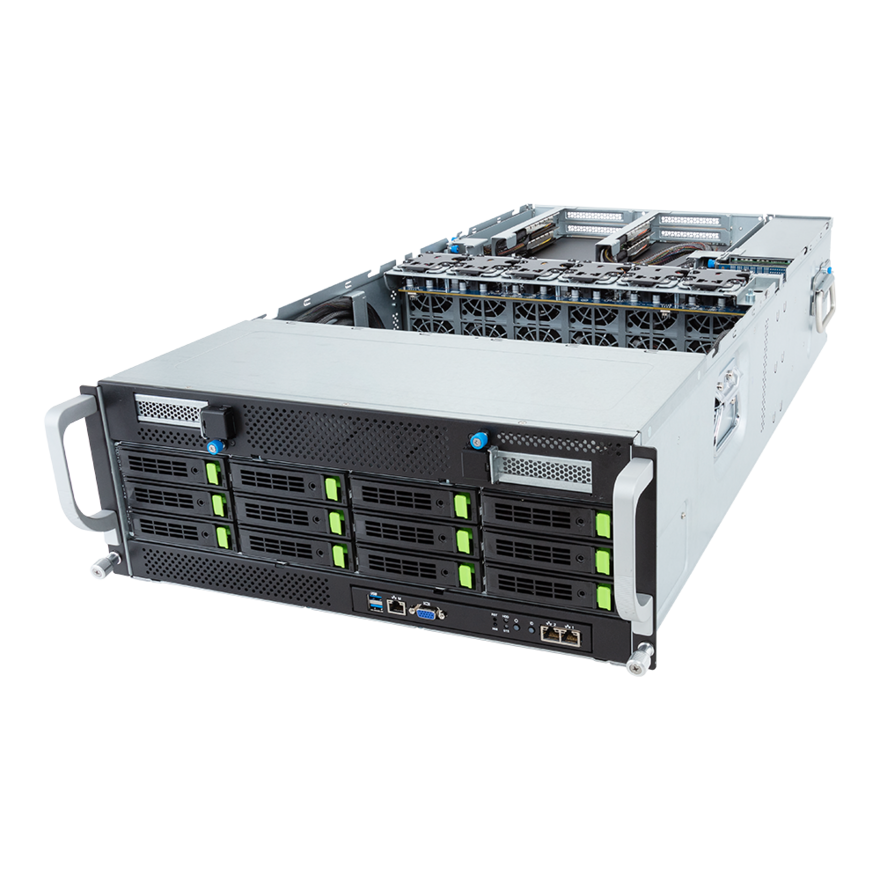

Gigabyte 4U HPC/AI Server Barebone - Intel Gen4/Gen5 Xeon Scalable, Dual CPU, 8x Gen5 GPUs (G493-SB2 rev. AAP1)

Gigabyte

No reviews yet Write a Review
SKU:
CSG493SB2AAP1
MPN: G493-SB2-AAP1
$12,119.00
Gigabyte 4U HPC/AI Server Barebone - Intel Gen4/Gen5 Xeon Scalable, Dual CPU, 8x Gen5 GPUs (G493-SB2 rev. AAP1)
UPC:
889523037942
Shipping and Returns
$12,119.00

Description

G493-SB2 (rev. AAP1) (Datasheet PDF)

HPC/AI Server - 4th/5th Gen Intel Xeon Scalable - 4U DP 8 x PCIe Gen5 GPUs

  • Supports up to 8 x Dual slot Gen5 GPU cards
  • 5th Gen Intel Xeon Scalable Processors
  • 4th Gen Intel Xeon Scalable Processors
  • Intel Xeon CPU Max Series
  • Dual processor, LGA 4677
  • 8-Channel RDIMM DDR5, 32 x DIMMs
  • Dual ROM Architecture
  • 2 x 10Gb/s BASE-T LAN ports (Intel X710-AT2)
  • 1 x Dedicated management port
  • 12 x 3.5"/2.5" Gen5 NVMe/SATA/SAS hot-swappable bays
  • 1 x M.2 slot with PCIe Gen3 x1 interface
  • 8 x FHFL PCIe Gen5 x16 slots for GPUs
  • 4 x FHFL PCIe Gen5 x16 slots
  • 2 x LP PCIe Gen5 x16 slots on front side
  • 3+1 3000W 80 PLUS Titanium redundant power supplies

Specifications

Brand:
Gigabyte
Weight:
72.00 LBS
Form Factor:
Rackmount
Rack Height:
4U
Dimensions:
47 x 32 x 12 inch
Motherboard:
MSB3-G40
Number of CPUs:
2
CPU:
Intel Xeon CPU Max, 4th- 5th Gen Intel Xeon Scalable
CPU Specifications:
CPU TDP up to 350W
GPU Integrated:
Yes
Number of DIMM Slots:
32 x DIMM slots
Memory Supported:
8-Channel RDIMM, DDR5 memory supported only
NIC (LAN):
2 x 10Gb/s BASE-T LAN ports (1 x Intel X710-AT2), NCSI function supported
NIC (Management):
1 x 10/100/1000 Mbps Management LAN
Expansion Slots:
8 x PCIe Gen5 x16 FHFL slots for GPUs on rear side, 4 x PCIe Gen5 x16 FHHL slots on rear side, 2 x PCIe Gen5 x16 Low-profile MD2 slots on front side, 1 x M.2 slot (M-key, PCIe Gen3 x1, supports 2280/22110)
Expansion Bays:
12 x 3.5" SATA/SAS hot-swappable bays, SAS card is required for SAS devices support
Power Supply:
3+1 3000W (240V) 80 PLUS Titanium redundant power supply
