  • Gigabyte 4U HPC/AI Server - 5th/4th Gen Intel Xeon Scalable, Dual CPU, 8 x PCIe Gen5 GPUs (with PCIe switches) G493-SB3 Rev. AAP1

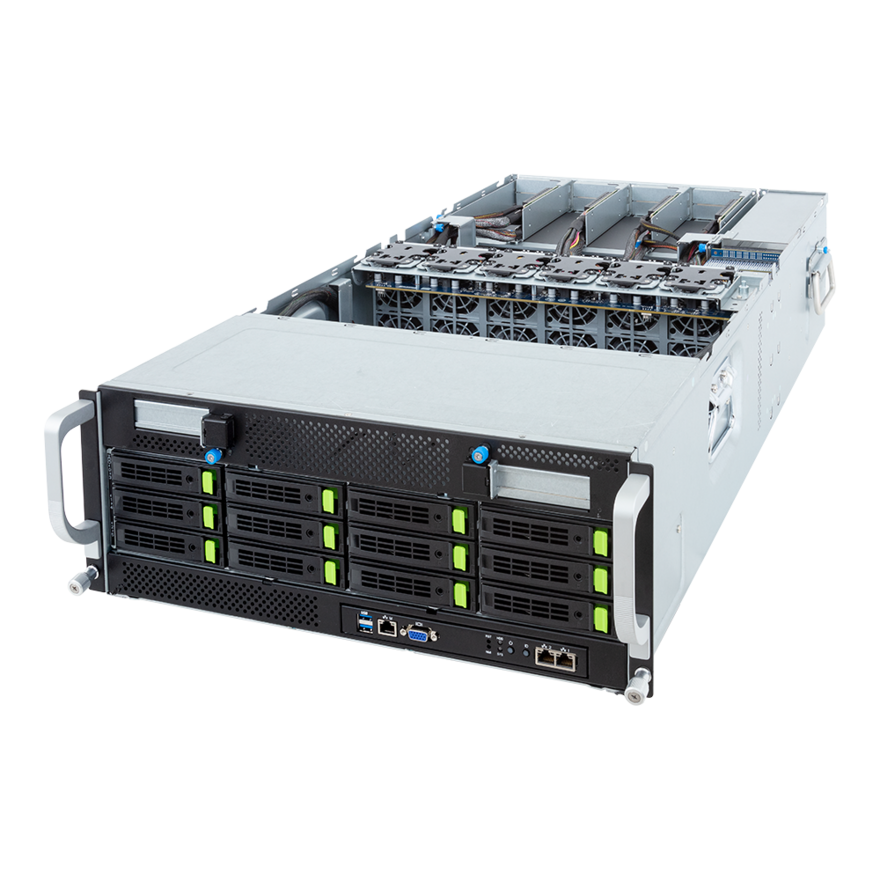

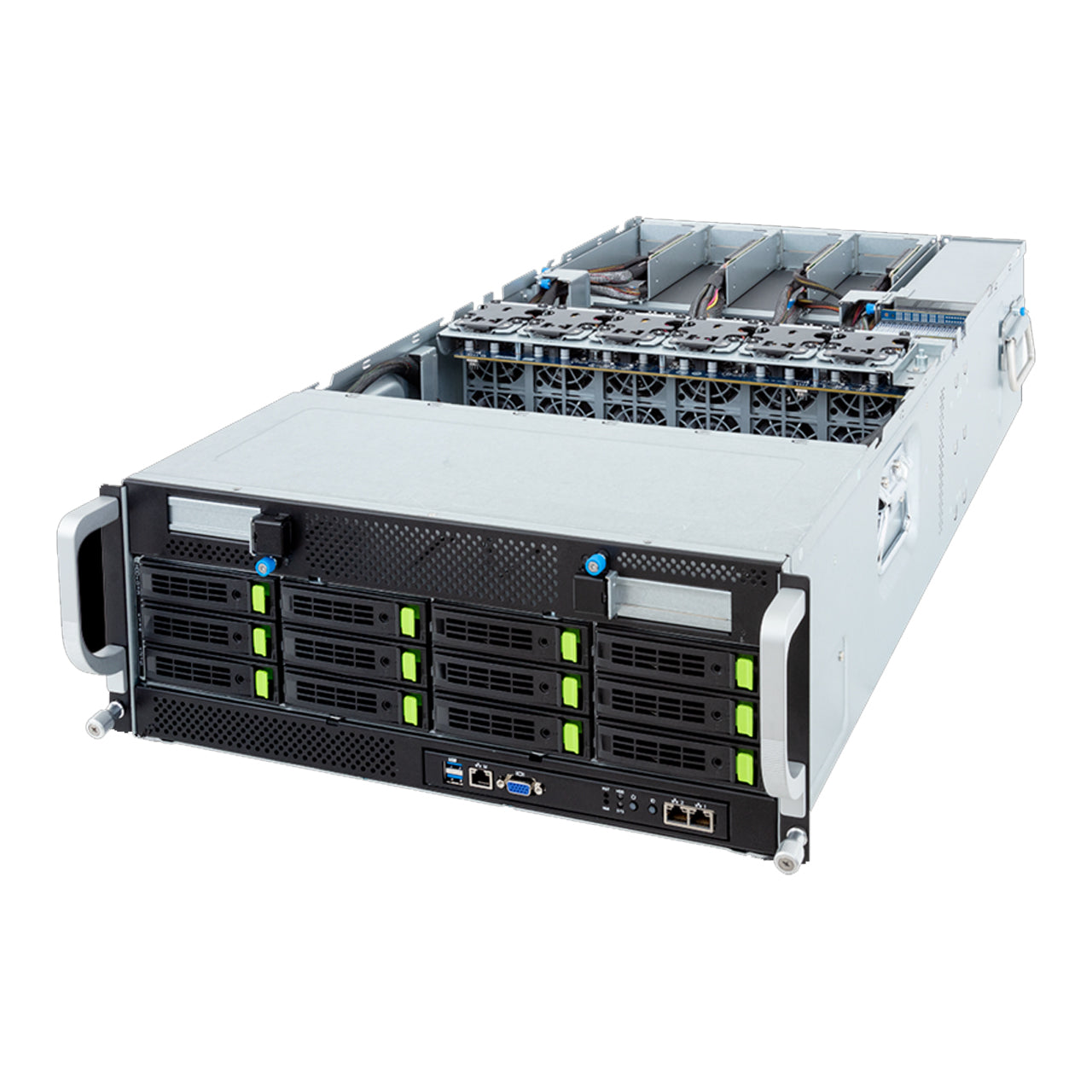

Gigabyte 4U HPC/AI Server - 5th/4th Gen Intel Xeon Scalable, Dual CPU, 8 x PCIe Gen5 GPUs (with PCIe switches) G493-SB3 Rev. AAP1

Gigabyte

No reviews yet Write a Review
SKU:
CSG493SB3AAP1
MPN: G493-SB3-AAP1
$11,014.50
Gigabyte 4U HPC/AI Server - 5th/4th Gen Intel Xeon Scalable, Dual CPU, 8 x PCIe Gen5 GPUs (with PCIe switches) G493-SB3 Rev. AAP1
UPC:
889523045664
Shipping and Returns
$11,014.50

Description

G493-SB3-AAP1 (Datasheet PDF)

HPC/AI Server - 5th/4th Gen Intel Xeon Scalable - 4U DP 8 x PCIe Gen5 GPUs (with PCIe switches)

  • NVIDIA-Certified Systems - Data Center Servers
  • Supports up to 8 x Dual slot Gen5 GPUs
  • Dual 5th/4th Gen Intel® Xeon® Scalable Processors
  • Dual Intel Xeon CPU Max Series
  • 8-Channel DDR5 RDIMM, 32 x DIMMs
  • Dual ROM Architecture
  • 2 x 10Gb/s LAN ports via Intel X710-AT2
  • 12 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 hot-swappable bays
  • 1 x M.2 slot with PCIe Gen3 x1 interface
  • 8 x FHFL PCIe Gen5 x16 slots for GPUs
  • 8 x LP PCIe Gen5 x16 slots
  • 2 x LP PCIe Gen5 x16 slots on the front side
  • 3+1 3000W 80 PLUS Titanium redundant power supplies

Specifications

Brand:
Gigabyte
Weight:
174.20 LBS
Form Factor:
Rackmount
Rack Height:
4U
Dimensions:
48 x 32 x 18 inch
Motherboard:
MSB3-G40
Number of CPUs:
2
CPU:
4th, 5th Generation Intel Xeon Scalable
CPU Specifications:
TDP up to 350W
GPU Integrated:
Yes
Number of DIMM Slots:
32 x DIMM slots
Memory Supported:
8-Channel RDIMM, DDR5 memory supported only
NIC (LAN):
2 x 10Gb/s LAN ports (1 x Intel X710-AT2), Support NCSI function
NIC (Management):
1 x 10/100/1000 Mbps Management LAN
Expansion Slots:
8 x FHFL PCIe Gen5 x16 slots for GPUs (with PCIe switches), 8 x LP PCIe Gen5 x16 slot, 2 x LP PCIe Gen5 x16 slots on the front side
Expansion Bays:
12 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4* hot-swappable bays, *SAS card is required to support SAS drives., 1 x M.2 slot (M-key, PCIe Gen3 x1, supports 2280/22110)
Power Supply:
3+1 3000W 80 PLUS Titanium redundant power supplies
