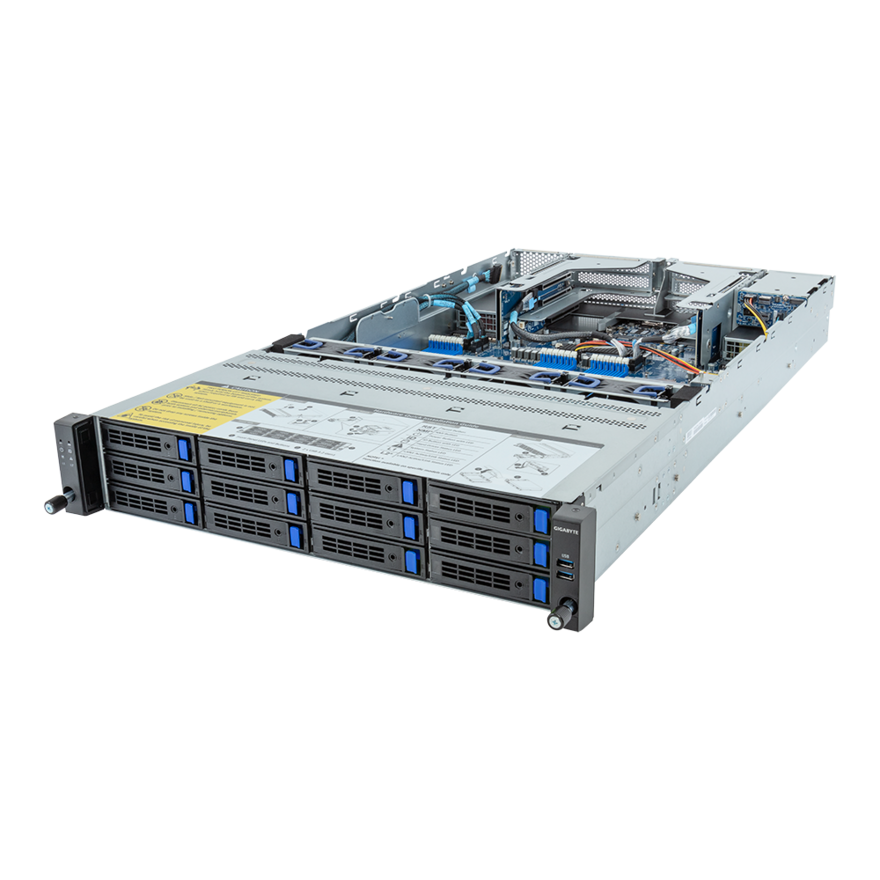

  • Gigabyte 2U Rack Server Barebone - AMD EPYC 9004, Dual CPU, 3x Gen3 M.2, 24x DIMM Slots, 12+2 SATA/SAS Bays (R283-Z91 rev. AAD2)

Gigabyte 2U Rack Server Barebone - AMD EPYC 9004, Dual CPU, 3x Gen3 M.2, 24x DIMM Slots, 12+2 SATA/SAS Bays (R283-Z91 rev. AAD2)

Gigabyte

No reviews yet Write a Review
SKU:
CSR283Z91AAD2
MPN: R283-Z91-AAD2
$3,719.99
Gigabyte 2U Rack Server Barebone - AMD EPYC 9004, Dual CPU, 3x Gen3 M.2, 24x DIMM Slots, 12+2 SATA/SAS Bays (R283-Z91 rev. AAD2)
UPC:
889523041536
Shipping and Returns
$3,719.99

Description

R283-Z91 (rev. AAD2) (Datasheet PDF)

Rack Server - AMD EPYC 9004 - 2U DP 12+2-Bay SATA/SAS with expander

  • AMD EPYC 9004 Series processors
  • AMD EPYC 9004 Series processors with AMD 3D V-Cache Technology
  • Dual processor, 5nm technology
  • 12-Channel RDIMM DDR5, 24 x DIMMs
  • Dual ROM Architecture
  • 2 x 1Gb/s LAN ports (Intel I350-AM2)
  • 1 x Dedicated management port
  • 12 x 3.5"/2.5" SATA/SAS hot-swappable bays
  • 2 x 2.5" SATA/SAS hot-swappable bays on rear side
  • Onboard 12Gb/s SAS expander
  • 3 x M.2 slots with PCIe Gen3 x4 and x2 interface
  • 6 x FHHL PCIe Gen5 x16 slots
  • 2 x OCP 3.0 Gen5 x16 slots
  • Dual 1600W (240V) 80 PLUS Platinum redundant power supply

Specifications

Brand:
Gigabyte
Weight:
45.00 LBS
Form Factor:
Rackmount
Rack Height:
2U
Dimensions:
43 x 27 x 13 inch
Motherboard:
MZ93-FS0
Number of CPUs:
2
CPU:
AMD EPYC 9004
CPU Specifications:
Up to 128-core, 256 threads per processor cTDP up to 300W at ambient 35C
GPU Integrated:
Yes
Number of DIMM Slots:
24 x DIMM slots
Memory Supported:
12-Channel RDIMM, DDR5 memory supported only
NIC (LAN):
2 x 1GbE LAN ports (1 x Intel I350-AM2)Support NCSI function
NIC (Management):
1 x 10/100/1000 Mbps Management LAN
Expansion Slots:
6 x PCIe Gen5 x16 FHHL slots2 x PCIe Gen5 x16 OCP 3.0 slots - Supporte NCSI function2 x M.2 slots (M-key, PCIe Gen3 x4, NGFF-2280/22110)1 x M.2 slot (M-key, PCIe Gen3 x2, NGFF-2280/22110)
Expansion Bays:
12 x 3.5/2.5" SATA/SAS hot-swappable bays2 x 2.5" SATA/SAS hot-swappable bays on rear sideAll devices are connected to SAS35x24R expanderSAS card is required to enable the drives
Power Supply:
Dual 1600W 80 PLUS Platinum redundant power supply
