Gigabyte 2U Rack Server - AMD EPYC 9004 Dual CPU, 3x Gen3 M.2, 2+2 Gen5 PCIe Slots, 12+4 Gen5 NVMe/SATA/SAS-4 Bays R283-Z94 Rev. AAD1

Gigabyte

No reviews yet Write a Review
SKU:
CSR283Z94AAD1
MPN: R283-Z94-AAD1
$3,010.00
Gigabyte 2U Rack Server - AMD EPYC 9004 Dual CPU, 3x Gen3 M.2, 2+2 Gen5 PCIe Slots, 12+4 Gen5 NVMe/SATA/SAS-4 Bays R283-Z94 Rev. AAD1
UPC:
889523046906
Shipping and Returns
$3,010.00

Description

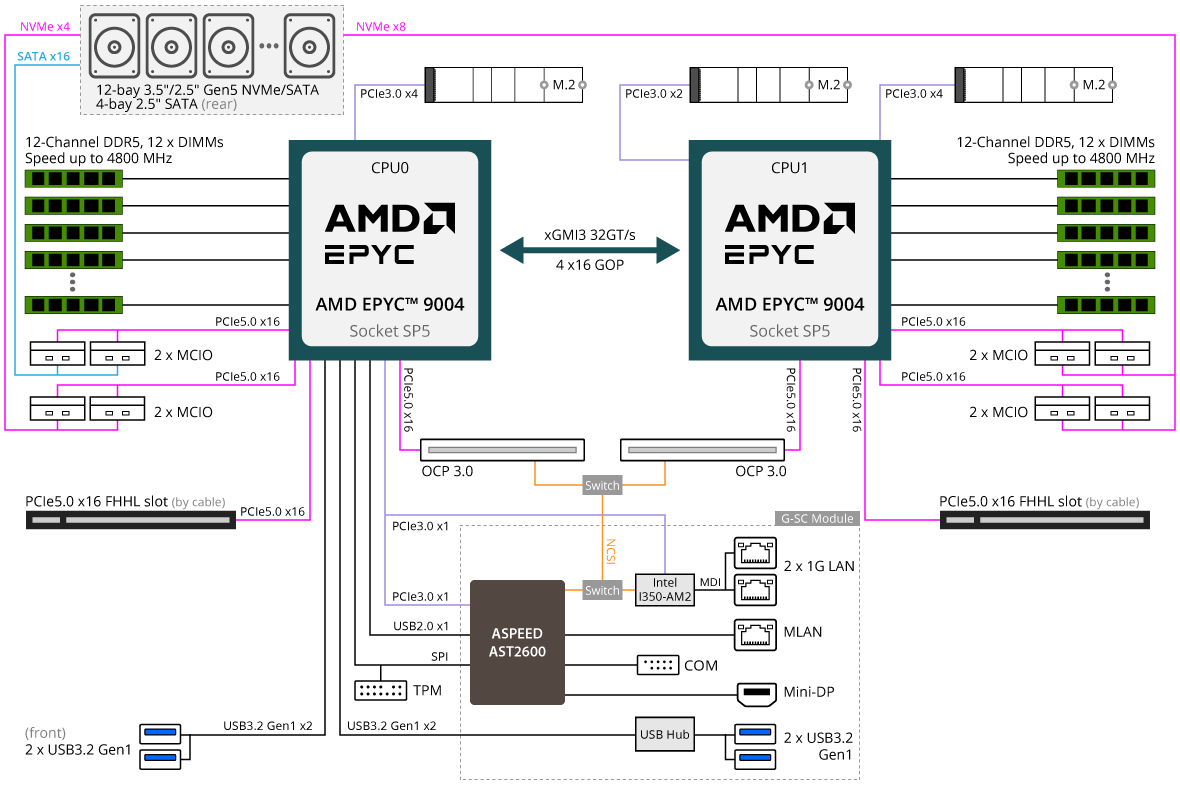

R283-Z94- AAD1 (Datasheet PDF)

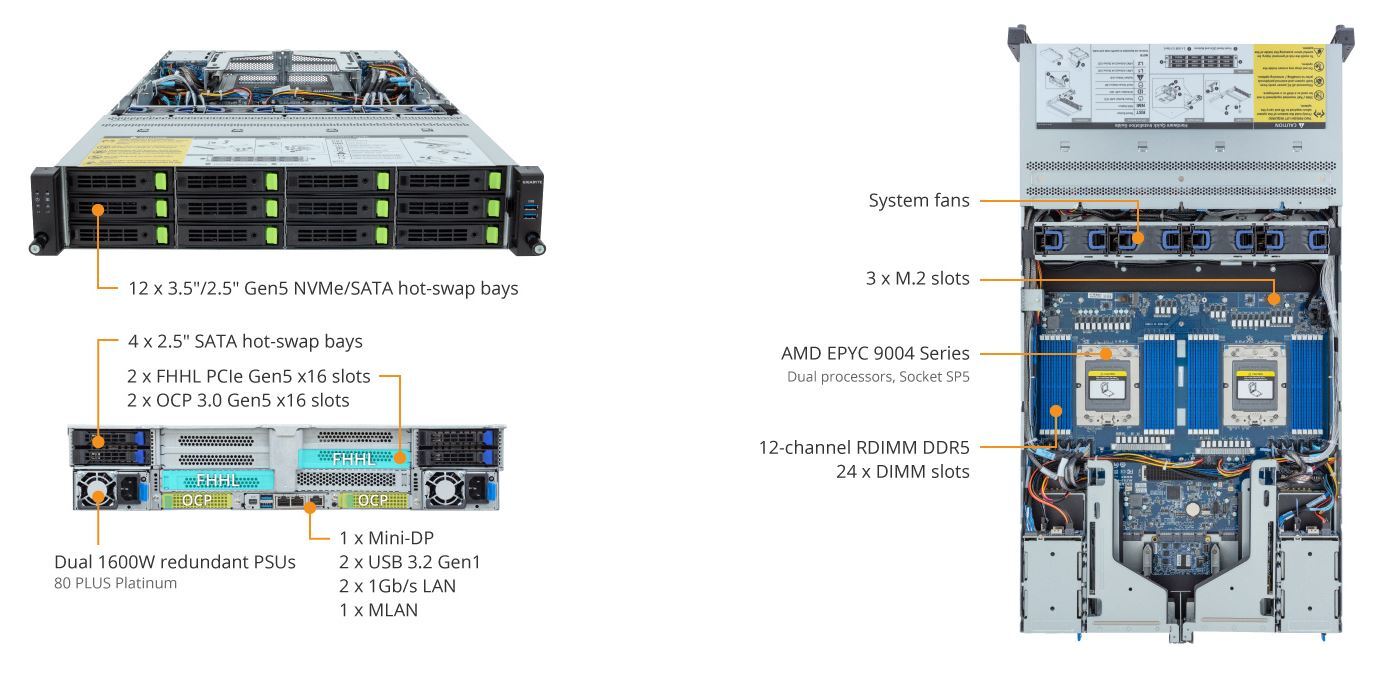

Rack Server - AMD EPYC 9004 - 2U DP 12+4-Bay Gen5 NVMe/SATA/SAS-4 (12 x NVMe) Platinum

  • Dual AMD EPYC 9004 Series Processors
  • 12-Channel DDR5 RDIMM, 24 x DIMMs
  • Dual ROM Architecture
  • 2 x 1Gb/s LAN ports via Intel I350-AM2
  • 12 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
  • 4 x 2.5" SATA/SAS-4 hot-swap bays on the rear side
  • 3 x M.2 slots with PCIe Gen3 x4 and x2 interface
  • 2 x FHHL PCIe Gen5 x16 slots
  • 2 x OCP NIC 3.0 PCIe Gen5 x16 slots
  • Dual 1600W 80 PLUS Platinum redundant power supply

Specifications

Brand:
Gigabyte
Weight:
32.30 LBS
Form Factor:
Rackmount
Rack Height:
2U
Dimensions:
43 x 27 x 12 inch
Motherboard:
MZ93-FS1
Number of CPUs:
2
CPU:
AMD EPYC 9004
CPU Specifications:
Dual processors, 5nm technology, cTDP up to 300W at ambient 35°C, 2 x LGA 6096 (Socket SP5)
GPU Integrated:
Yes
Number of DIMM Slots:
24 x DIMM slots
Memory Supported:
12-Channel RDIMM, DDR5 memory supported only
NIC (LAN):
2 x 1GbE LAN ports (ntel I350-AM2)Supported NCSI function
NIC (Management):
1 x 10/100/1000 Mbps Management LAN
Expansion Slots:
2 x FHHL PCIe Gen5 x16 slot2 x OCP 3.0 Gen5 x16 slots (supports NCSI function)2 x M.2 slots (M-key, PCIe Gen3 x4, supports 2280/22110 cards)1 x M.2 slot (M-key, PCIe Gen3 x2, supports 2280/22110 cards)
Expansion Bays:
12 x 3.5"/2.5" Gen5 NVMe/SATA/SAS4 hot-swappable bays4 x 2.5" SATA/SAS4 hot-swappable bays on rear sideSAS card is required for SAS devices support
Power Supply:
Dual 1600W 80 PLUS Platinum redundant power suppl
