Gigabyte 2U Rack Server - AMD EPYC 7003/7002 Dual CPU, 24+2x Gen3 NVMe/SATA/SAS Bays, 2x 1Gb/s LAN ports R282-Z92 Rev. A00

Gigabyte

No reviews yet Write a Review
SKU:
CSR282Z92
MPN: R282-Z92
$2,796.00
Gigabyte 2U Rack Server - AMD EPYC 7003/7002 Dual CPU, 24+2x Gen3 NVMe/SATA/SAS Bays, 2x 1Gb/s LAN ports R282-Z92 Rev. A00
UPC:
889523000000
Shipping and Returns
$2,796.00

Description

R282-Z92 Rev. A00 (Datasheet PDF)

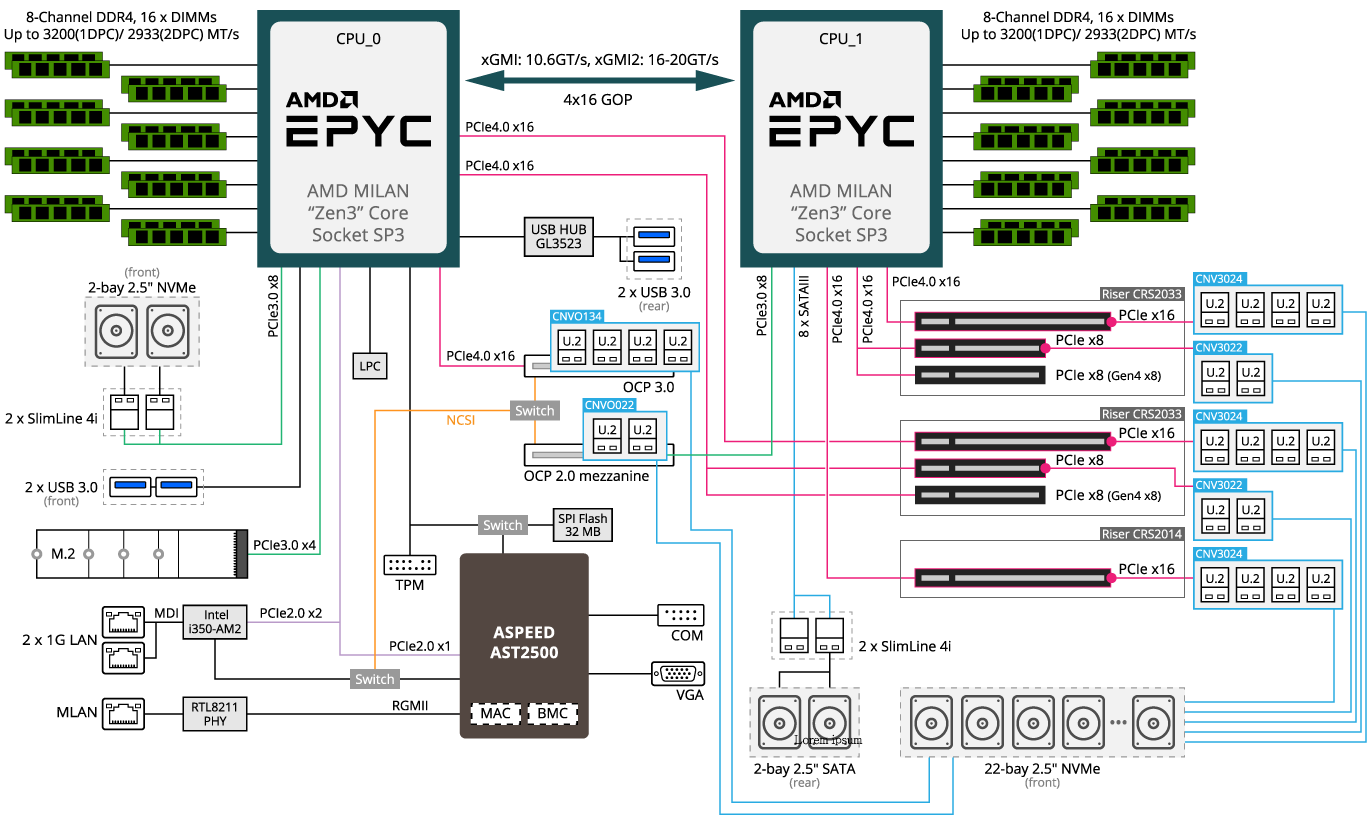

Rack Server - AMD EPYC 7003/7002 - 2U DP 24+2-Bay Gen3 NVMe/SATA/SAS

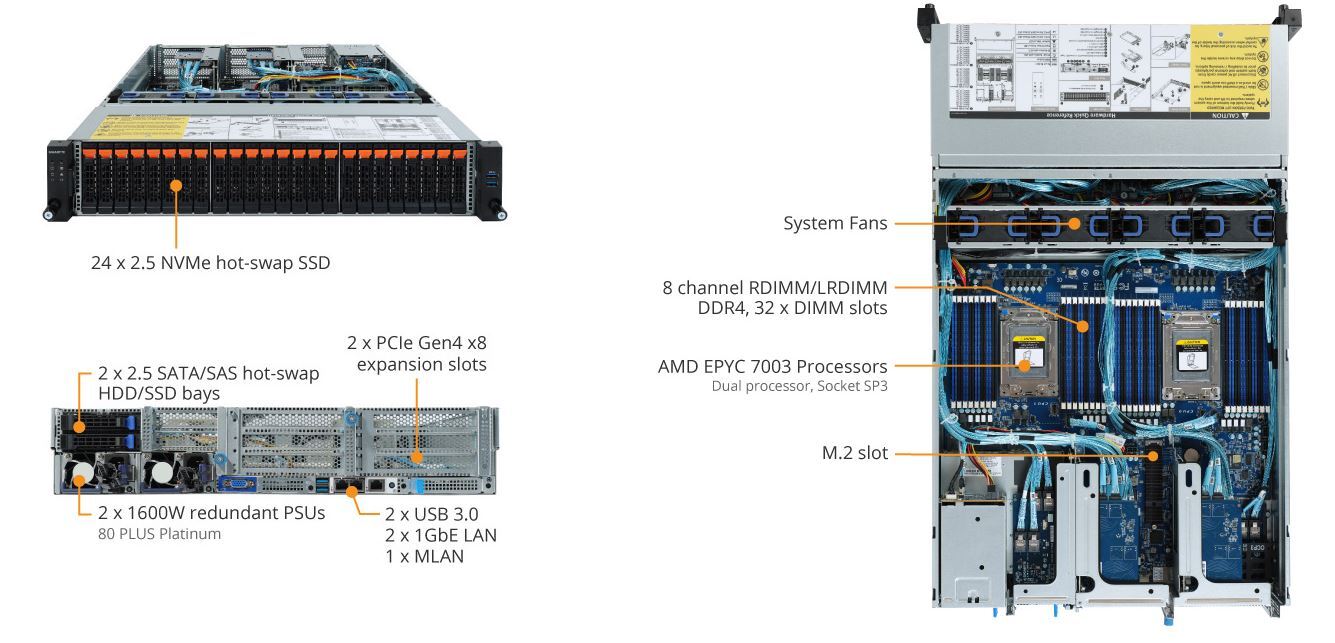

  • Dual AMD EPYC 7003/7002 Series Processors (with AMD 3D V-Cache Technology)
  • 8-Channel DDR4 RDIMM/LRDIMM, 32 x DIMMs
  • 2 x 1Gb/s LAN ports via Intel I350-AM2
  • 24 x 2.5" Gen3 NVMe hot-swappable bays
  • 2 x 2.5" SATA/SAS hot-swappable bays on the rear side
  • 1 x M.2 slot with PCIe Gen3 x4 interface
  • 2 x FHHL PCIe Gen4 x8 slots
  • 1+1 1600W 80 PLUS Platinum redundant power supplies

Specifications

Brand:
Gigabyte
Weight:
56.20 LBS
Form Factor:
Rackmount
Rack Height:
2U
Dimensions:
39 x 24 x 11 inch
Motherboard:
MZ92-FS0 Rev. 3.0
Number of CPUs:
2
CPU:
AMD EPYC 7003
CPU Specifications:
Dual processors, 7nm technology, Socket SP3 Up to 64-core, 128 threads per processorTDP up to 225W, cTDP up to 240W, Fully support 280W
GPU Integrated:
Yes
Number of DIMM Slots:
32 x DIMM slots
Memory Supported:
8-Channel RDIMM/LRDIMM, DDR4 memory supported only
NIC (LAN):
2 x 1GbE LAN ports (1 x Intel I350-AM2) Supported NCSI function
NIC (Management):
1 x 10/100/1000 Mbps Management LAN
Expansion Slots:
2 x PCIe x8 slots (Gen4 x8), FHHL
Expansion Bays:
24 x 2.5" U.2 hot-swappable HDD/SSD bays 2 x 2.5" SATA/SAS hot-swappable HDD/SSD baysM-key, PCIe Gen3 x4Supports NGFF-2242/2260/2280/22110 cards
Power Supply:
1600W (240V) 80 PLUS Platinum redundant power supply
