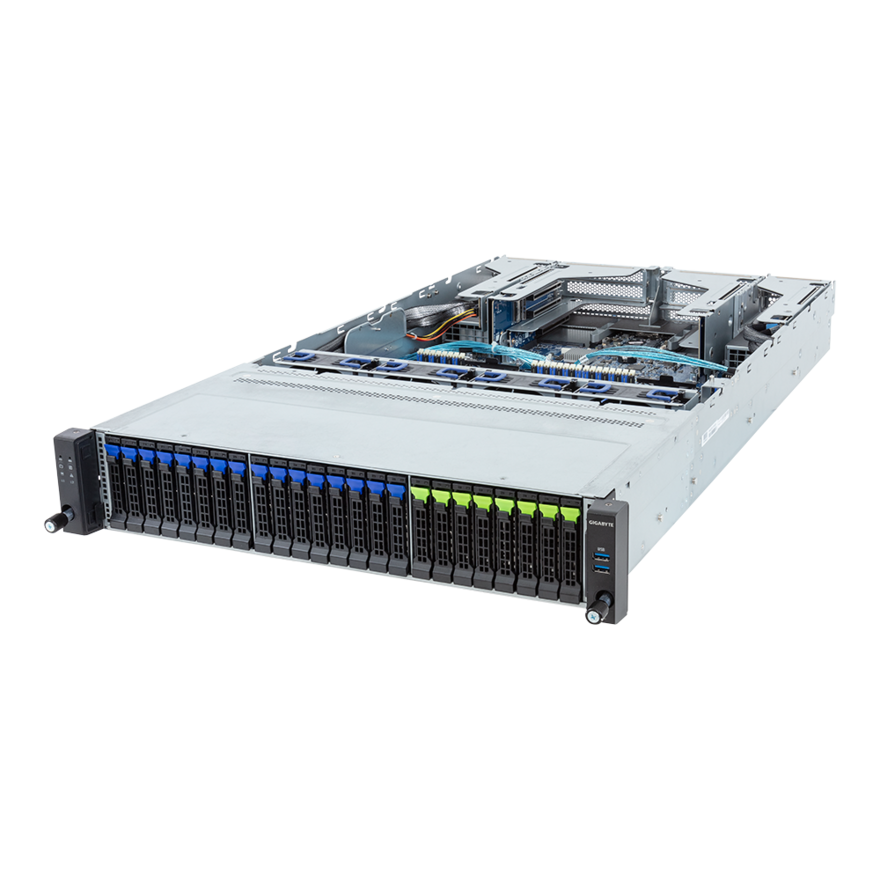

Gigabyte 2U Rack Server - 5th/4th Gen Intel Xeon Scalable Dual CPU, 4+4 Gen5 PCIe Slots, 24 Gen4 NVMe/SATA/SAS Bays R283-S92 Rev. AAE3

Gigabyte

No reviews yet Write a Review
SKU:
CSR283S92AAE3
MPN: R283-S92-AAE3
$3,199.99
Gigabyte 2U Rack Server - 5th/4th Gen Intel Xeon Scalable Dual CPU, 4+4 Gen5 PCIe Slots, 24 Gen4 NVMe/SATA/SAS Bays R283-S92 Rev. AAE3
UPC:
889523046890
Shipping and Returns
$3,199.99

Description

R283-S92- AAE3 (Datasheet PDF)

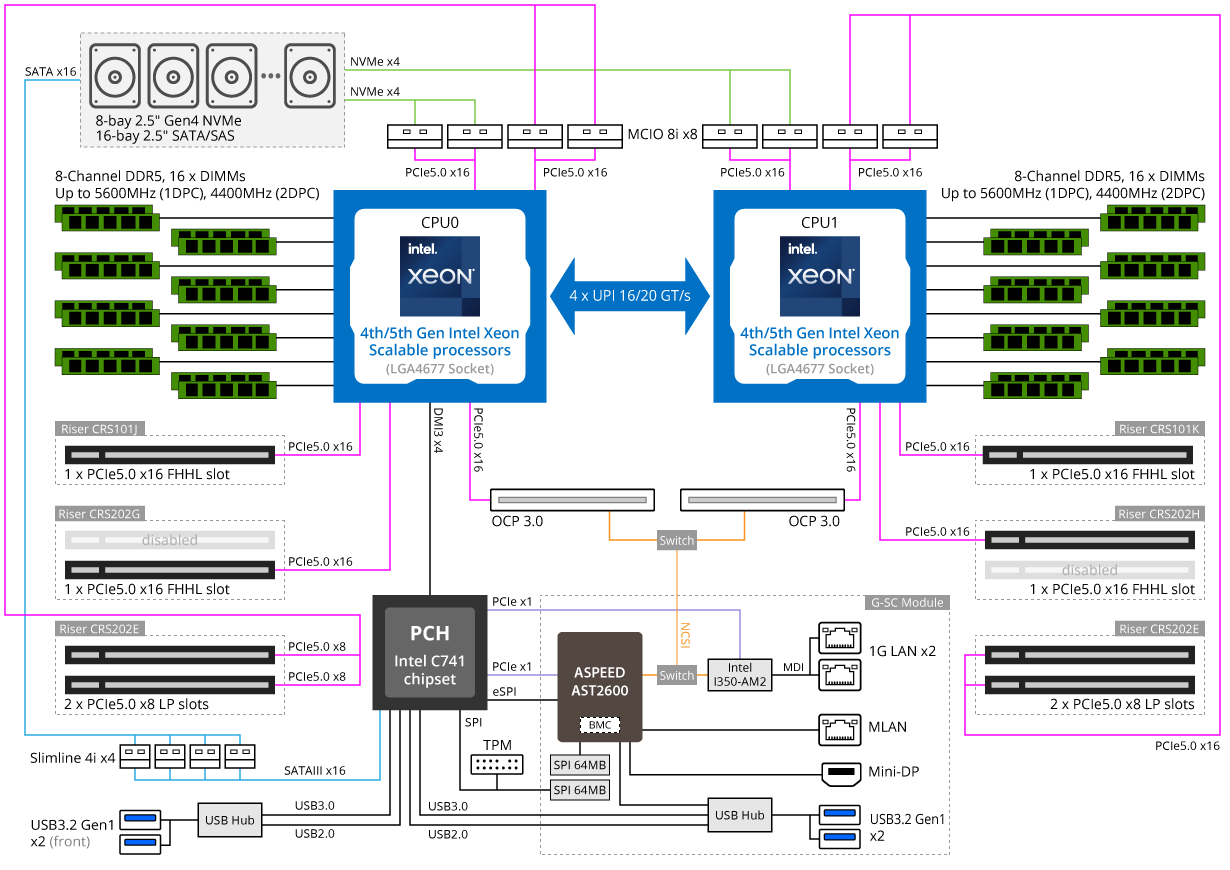

Rack Server - 5th/4th Gen Intel Xeon Scalable - 2U DP 24-Bay Gen4 NVMe/SATA/SAS (8 x NVMe)

  • Dual 5th/4th Gen Intel Xeon Scalable Processors
  • Dual Intel Xeon CPU Max Series
  • 8-Channel DDR5 RDIMM, 32 x DIMMs
  • Dual ROM Architecture
  • 2 x 1Gb/s LAN ports via Intel I350-AM2

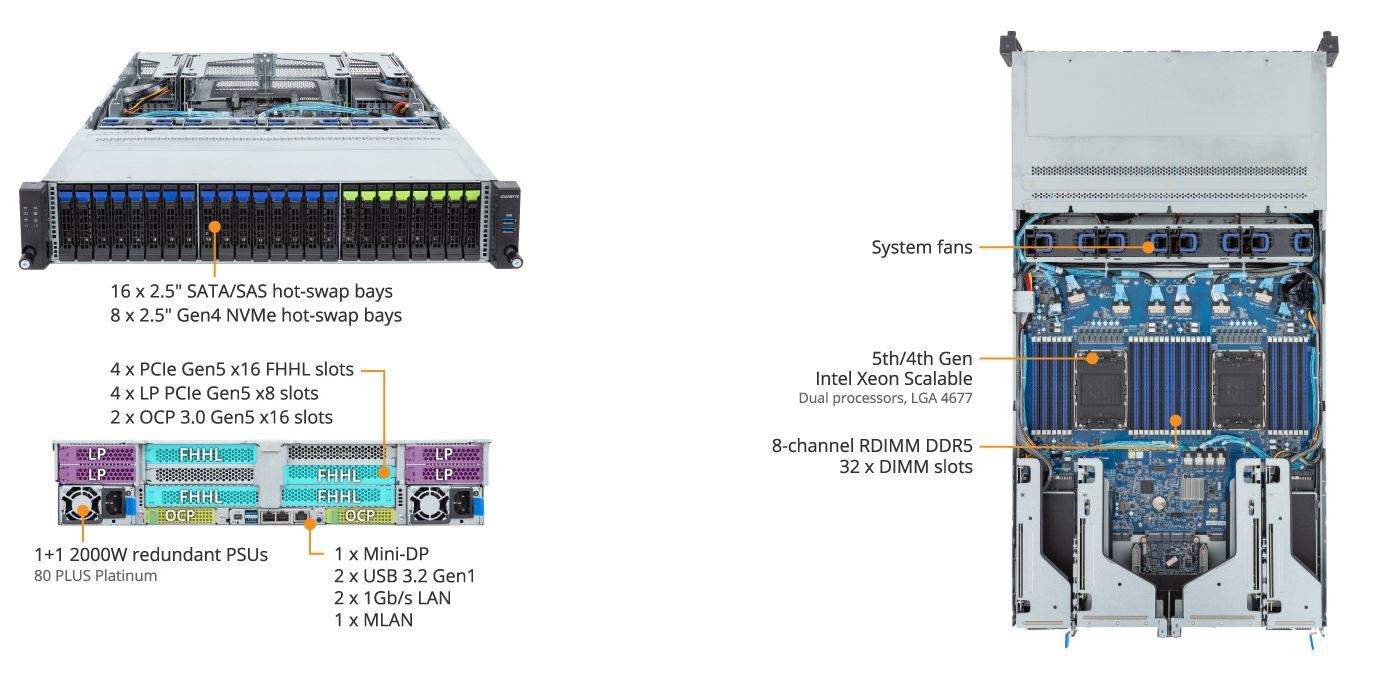

  • 8 x 2.5" Gen4 NVMe hot-swappable bays
  • 16 x 2.5" SATA/SAS hot-swappable bays
  • 4 x FHHL PCIe Gen5 x16 slots
  • 4 x LP PCIe Gen5 x8 slots
  • 2 x OCP 3.0 Gen5 x16 slots
  • 1+1 2000W 80 PLUS Platinum redundant power supplies

Specifications

Brand:
Gigabyte
Weight:
32.28 LBS
Form Factor:
Rackmount
Rack Height:
2U
Dimensions:
43 x 27 x 12 inch
Motherboard:
MS93-FS0
Number of CPUs:
2
CPU:
Intel Xeon CPU Max, 4th- 5th Gen Intel Xeon Scalable
CPU Specifications:
Dual processor, TDP up to 350W
GPU Integrated:
Yes
Number of DIMM Slots:
32 x DIMM slots
Memory Supported:
8-Channel RDIMM, DDR5 memory supported only
NIC (LAN):
2 x 1Gb/s LAN ports (1 x Intel I350-AM2) Supported NCSI function
NIC (Management):
1 x 10/100/1000 Mbps Management LAN
Expansion Slots:
4 x FHHL PCIe Gen5 x16 slots4 x LP PCIe Gen5 x8 slots2 x OCP 3.0 Gen5 x16 slots - Supports NCSI function
Expansion Bays:
8 x 2.5" Gen4 NVMe hot-swappable bays16 x 2.5" SATA/SAS hot-swappable bays*SAS card is required for SAS devices support
Power Supply:
1+1 2000W 80 PLUS Platinum redundant power supplies
