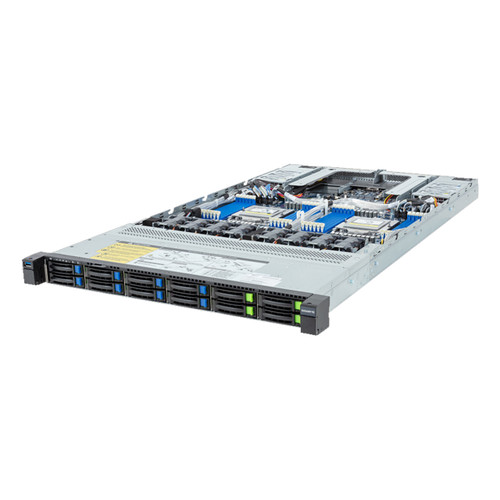

Gigabyte 1U Rack Server - AMD EPYC 9004 Dual CPU, 8x Gen5 NVMe/SATA/SAS-4 Bays, 2x 1Gb/s LAN Ports R183-Z96 Rev. AAD1

Gigabyte 1U Rack Server - AMD EPYC 9004 Dual CPU, 8x Gen5 NVMe/SATA/SAS-4 Bays, 2x 1Gb/s LAN Ports R183-Z96 Rev. AAD1

Gigabyte

No reviews yet Write a Review

SKU:: CSR183Z96AAD1

MPN: R183-Z96-AAD1

$3,380.00

Gigabyte 1U Rack Server - AMD EPYC 9004 Dual CPU, 8x Gen5 NVMe/SATA/SAS-4 Bays, 2x 1Gb/s LAN Ports R183-Z96 Rev. AAD1

UPC:: 889523043486

$3,380.00

Description

R183-Z96- AAD1 Rev. 1.x (Datasheet PDF)

Rack Server - AMD EPYC 9004 - 1U DP 8-Bay Gen5 NVMe/SATA/SAS-4 Platinum

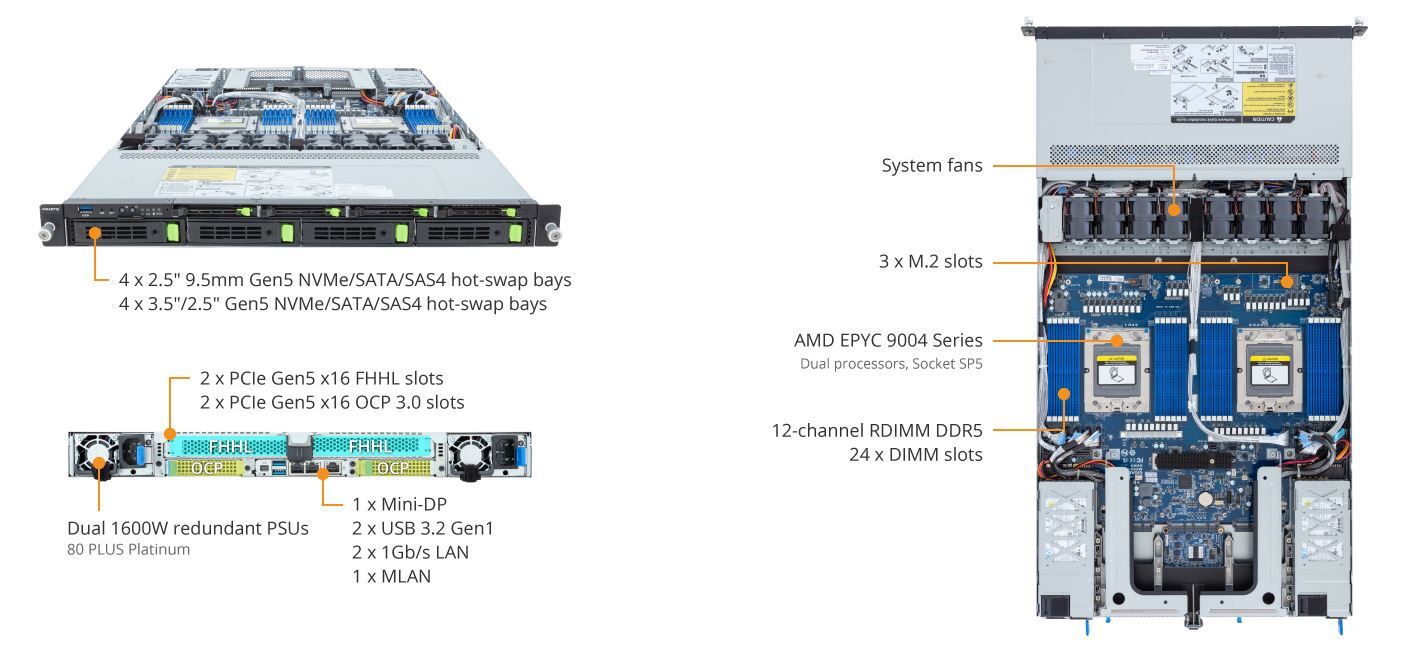

Dual AMD EPYC 9004 Series Processors
12-Channel DDR5 RDIMM, 24 x DIMMs
Dual ROM Architecture
2 x 1Gb/s LAN ports via Intel I350-AM2
4 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
4 x 2.5" 9.5mm Gen5 NVMe/SATA/SAS-4 hot-swap bays
3 x M.2 slots with PCIe Gen3 x4 and x2 interface
2 x FHHL PCIe Gen5 x16 slots
2 x OCP NIC 3.0 PCIe Gen5 x16 slots
Dual 1600W 80 PLUS Platinum redundant power supply

Specifications

Brand:

Gigabyte

Weight:

55.70 LBS

Form Factor:

Rackmount

Rack Height:

Dimensions:

42 x 24 x 10 inch

Motherboard:

MZ93-FS1

Number of CPUs:

CPU:

AMD EPYC 9004

CPU Specifications:

Dual processors, 5nm technology cTDP up to 300W at ambient 35°C

GPU Integrated:

Yes

Number of DIMM Slots:

24 x DIMM slots

Memory Supported:

12-Channel RDIMM, DDR5 memory supported only

NIC (LAN):

2 x 1GbE LAN ports (ntel I350-AM2) Supported NCSI function

NIC (Management):

1 x 10/100/1000 Mbps Management LAN

Expansion Slots:

2 x FHHL PCIe Gen5 x16 slots2 x OCP 3.0 Gen5 x16 slots (supports NCSI function)2 x M.2 slots (M-key, PCIe Gen3 x4, supports 2280/22110 cards)1 x M.2 slot (M-key, PCIe Gen3 x2, supports 2280/22110 cards)

Expansion Bays:

4 x 3.5"/2.5" Gen5 NVMe/SATA/SAS4 hot-swappable bays4 x 2.5" 9.5mm Gen5 NVMe/SATA/SAS4 hot-swappable baysSAS card is required for SAS4 devices support

Power Supply:

Dual 1600W 80 PLUS Platinum redundant power supply
