  • Gigabyte 1U Rack Server - AMD EPYC 8004, 1x PCIe Gen5 GPU, 1x Gen3 M.2, 4+8 Gen4 NVME/SATA/SAS Bays R143-EG2 Rev. AAC2

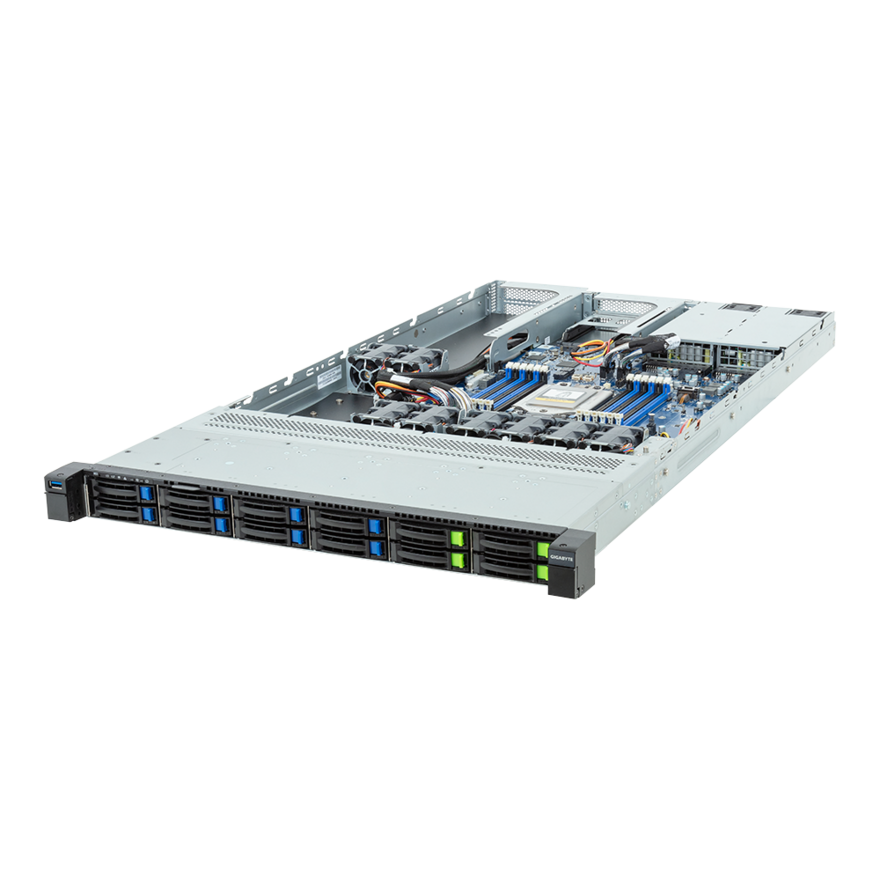

Gigabyte 1U Rack Server - AMD EPYC 8004, 1x PCIe Gen5 GPU, 1x Gen3 M.2, 4+8 Gen4 NVME/SATA/SAS Bays R143-EG2 Rev. AAC2

Gigabyte

No reviews yet Write a Review
SKU:
CSR143EG2AAC2
MPN: R143-EG2-AAC2
$2,199.99
Gigabyte 1U Rack Server - AMD EPYC 8004, 1x PCIe Gen5 GPU, 1x Gen3 M.2, 4+8 Gen4 NVME/SATA/SAS Bays R143-EG2 Rev. AAC2
UPC:
889523046869
Shipping and Returns
$2,199.99

Description

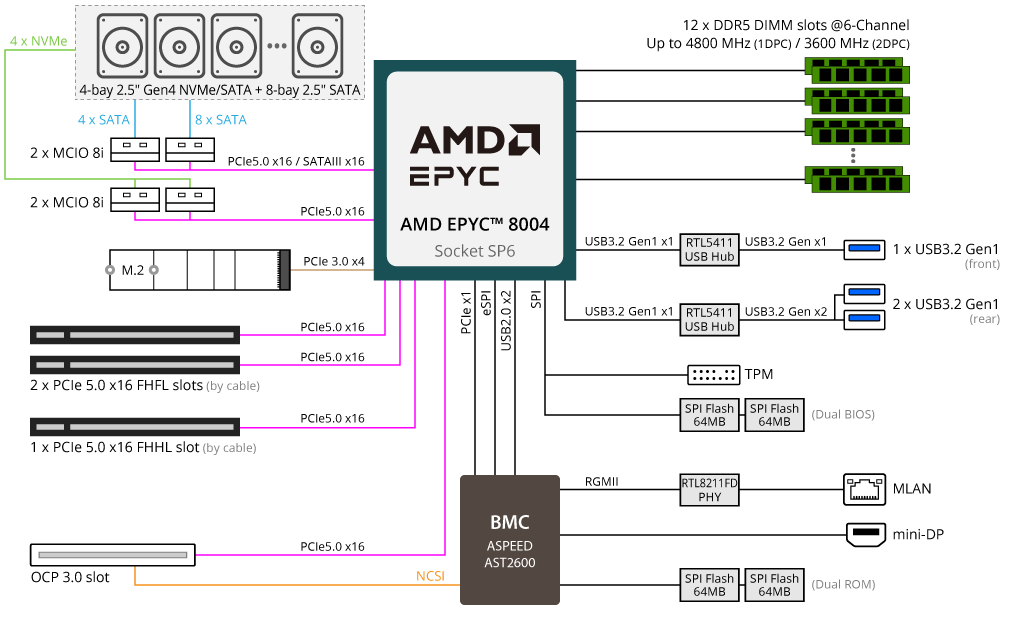

R143-EG2-AAC2 (Datasheet PDF)

Rack Server - AMD EPYC 8004 - 1U UP 1 x PCIe Gen5 GPU

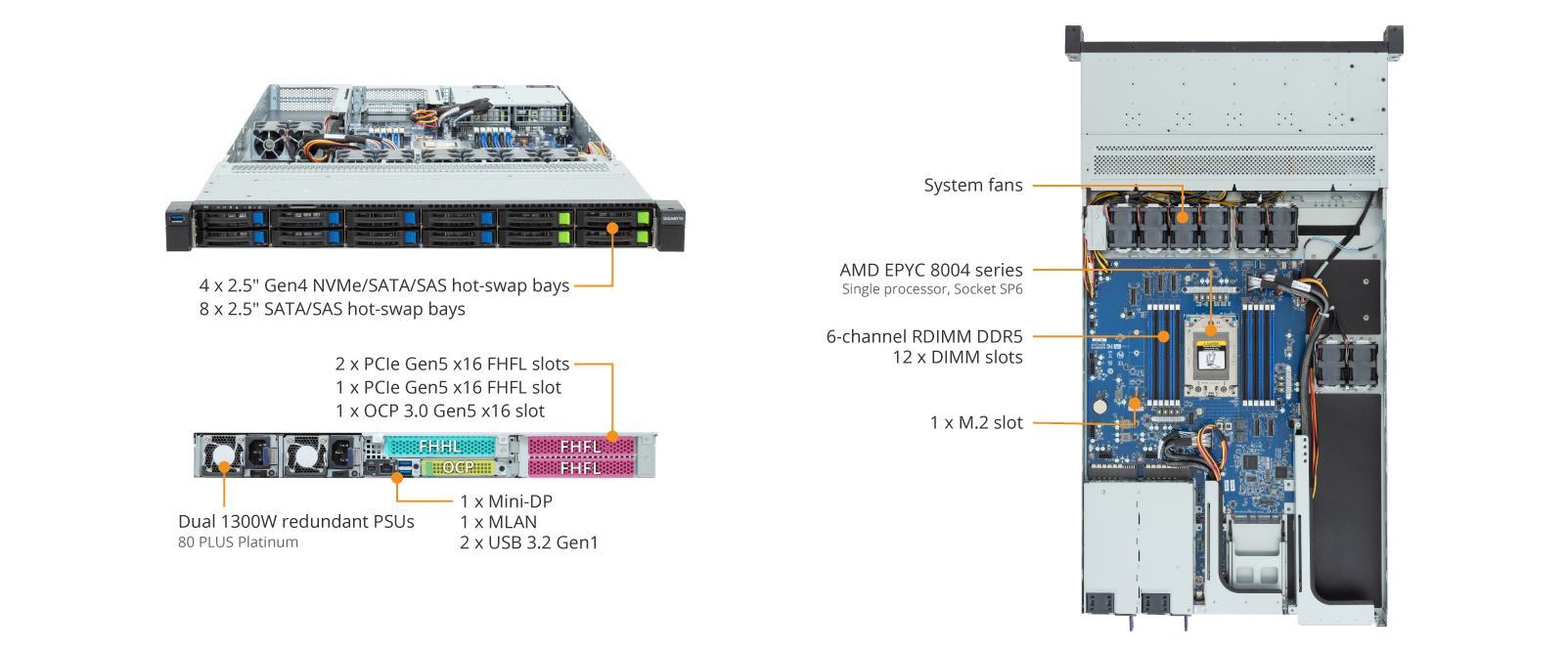

  • Supports 1 x Dual slot Gen5 GPU
  • Single AMD EPYC 8004 Series Processors
  • 6-Channel DDR5 RDIMM, 12 x DIMMs
  • Dual ROM Architecture
  • 4 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
  • 8 x 2.5" SATA/SAS hot-swappable bays
  • 1 x M.2 slot with PCIe Gen3 x4 interface
  • 1 x FHFL PCIe Gen5 x16 slot for GPUs
  • 1 x FHFL PCIe Gen5 x16 slot
  • 1 x FHHL PCIe Gen5 x16 slot
  • 1 x OCP 3.0 Gen5 x16 slot
  • 1+1 1300W 80 PLUS Platinum redundant power supplies

Specifications

Brand:
Gigabyte
Weight:
23.20 LBS
Form Factor:
Rackmount
Rack Height:
1U
Dimensions:
41 x 24 x 10 inch
Motherboard:
MEG3-GU0
Number of CPUs:
1
CPU:
AMD EPYC 8004
CPU Specifications:
64-core, 128 threads per processor cTDP up to 225W
GPU Integrated:
Yes
Number of DIMM Slots:
12 x DIMM slots
Memory Supported:
6-Channel RDIMM, DDR5 memory supported only
NIC (Management):
1 x 10/100/1000 Mbps Management LAN
Expansion Slots:
2 x PCIe x16 (Gen5 x16) FHFL slots 1 x PCIe x16 (Gen5 x16) FHHL slot 1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth (Supports NCSI)1 x M.2 slot: M-key, PCIe Gen3 x4, supports 2280/22110 cards
Expansion Bays:
4 x 2.5" Gen4 NVMe/SATA/SAS* hot-swappable bays 8 x 2.5" SATA/SAS* hot-swappable bays
Power Supply:
1+1 1300W (240V) 80 PLUS Platinum redundant power supplies
