The WD Gold 8TB Datacenter Drive (WD8002FRYZ) Review

WD Gold Datacenter Drives

On April 20, 2016, Western Digital launched the new WD Gold family of hard disk drives. These hard disk drives are designed for maximum performance and reliability in the highly demanding datacenter. They are designed to handle workloads of up to 550 TB per year (1.5 TB per day), with a MTBF rating of up to 2.5 million hours!



Today, we are going to take a look at the 8 TB Western Digital Gold hard disk drive. This is one of the two helium-filled WD Gold models to feature a hermetically-sealed chassis with an internal helium environment. That’s not what’s different though. For your convenience, we created a specification comparison of the WD Gold family of datacenter drives:

Specifications 10TB WD Gold 8TB WD Gold 6TB WD Gold 4TB WD Gold
Model WD101KRYZ WD8002FRYZ WD6002FRYZ
HelioSeal Technology Yes Yes No No
Advanced Format Technology Yes (512-byte emulation) Yes (512-byte emulation) Yes (512-byte emulation) No
Spindle Speed 7200 RPM 7200 RPM 7200 RPM 7200 RPM
Cache 256 MB SDRAM 128 MB SDRAM 128 MB SDRAM 128 MB SDRAM
Maximum Read / Write Speed 249 MB/s 205 MB/s 226 MB/s 201 MB/s
Sequential Read / Write Power Consumption
Random Read / Write Power Consumption
Acoustics (Seek / Idle) 36 dBA / 20 dBA 36 dBA / 20 dBA 36 dBA / 29 dBA 36 dBA / 29 dBA
MTBF (hours) 2.5 million 2.5 million 2 million 2 million
Warranty 5 Years 5 Years 5 Years 5 Years


Now, let’s check out the WD Gold 8TB datacenter hard disk drive!


Unboxing The 8TB WD Gold Drive

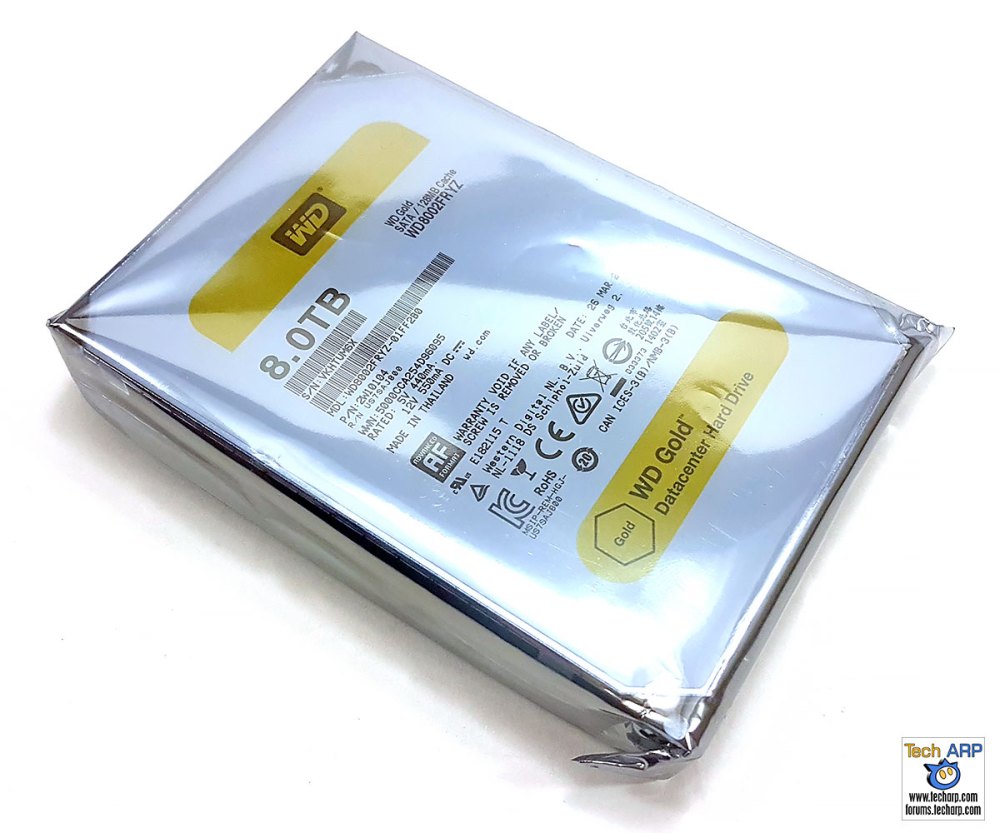

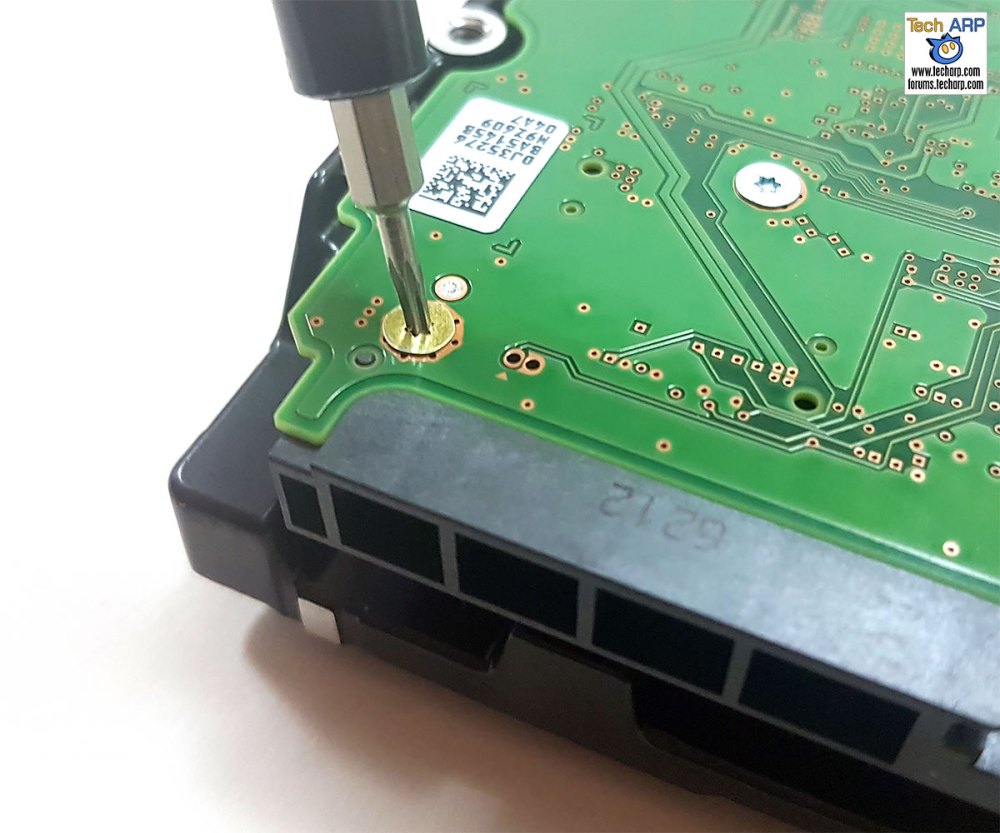

The WD Gold 8TB (WD8002FRYZ) hard disk drive came in a sealed anti-static plastic pack. Notably, it lacked the usual sachet of desiccants. That’s because the drive is hermetically-sealed in the factory, and filled with helium. Also notable is their use of two gold-coloured screws to lock the PCB in place.




To remove the drive, just tear off the top or cut it open, and slide out the drive. Be sure to ground yourself before removing and handling the hard disk drive as static can damage it. In particular, you should try to avoid touching the exposed PCB located on the lower underside of the drive.

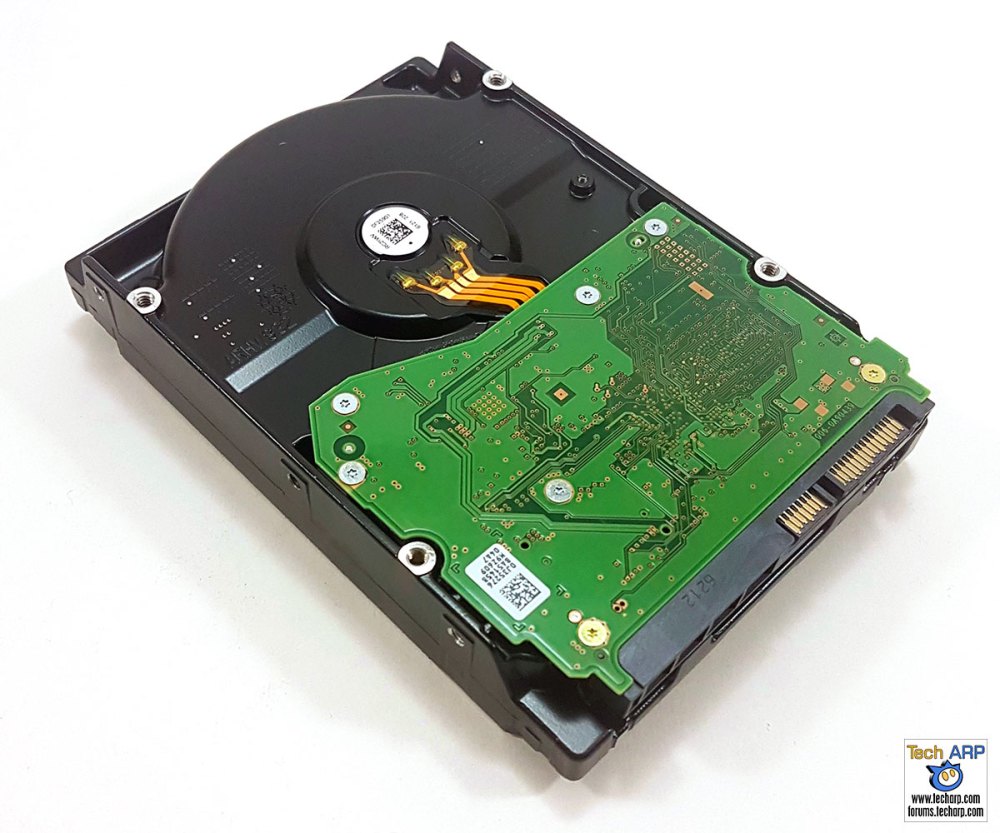

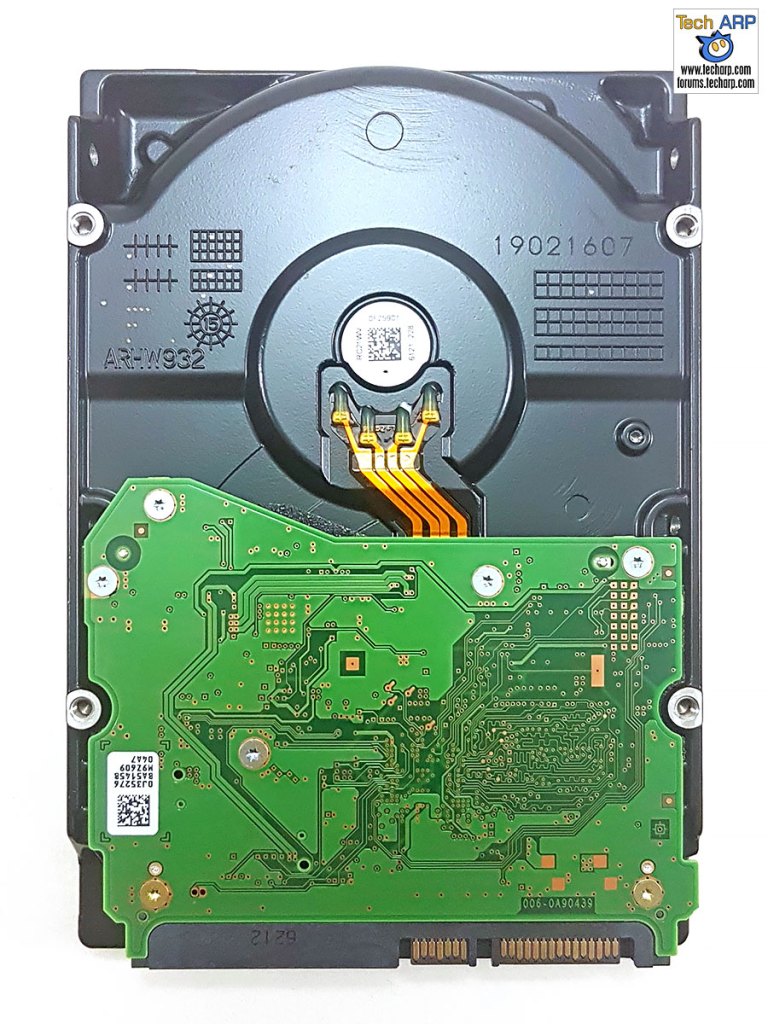

Despite featuring a hermetically-sealed chassis, the WD Gold 8TB (WD8002FRYZ) datacenter drive looks deceptively like any other 3.5″ desktop hard disk drive. In fact, it has the same label on the top plate, with an uncovered PCB on the underside.

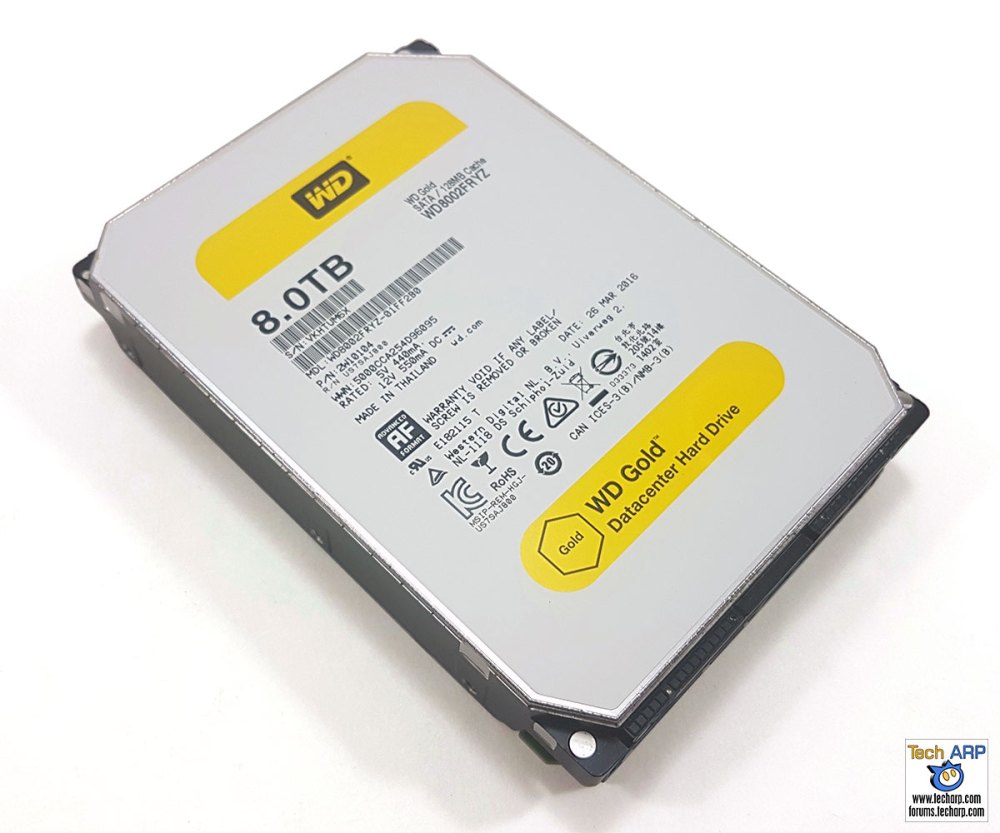

The label has a lot of important information, like the hard drive model, storage capacity as well as its date and place of manufacture. This particular drive was manufactured in Thailand on the 26th of March, 2016. You can also see that the drive uses the Advanced Format Technology to achieve its high storage density.


HelioSeal Technology

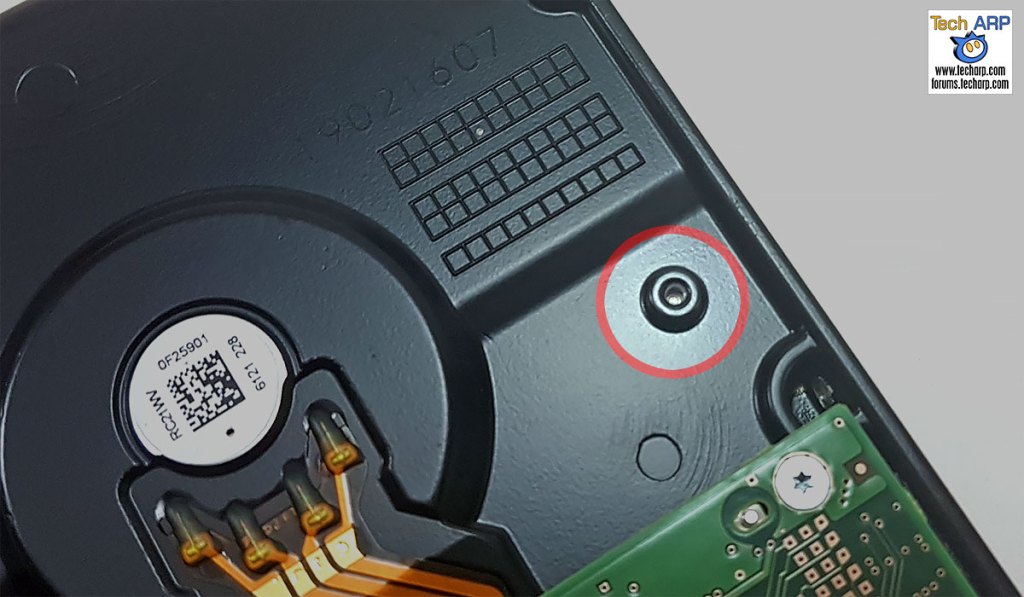

The WD Gold 8TB datacenter drive is one of the few hard disk drives in the market to feature the revolutionary HGST HelioSeal technology. Its is hermetically sealed at the factory, and filled with helium. The hole, which normally serves as the breather hole in a normal “air-filled” hard disk drive, is likely the port through which the air is extracted and replaced with helium.



Because helium is only 1/7th the density of “regular air”, it allows for less friction delivering the following benefits :

  • The lower friction reduces the amount of power required to spin the platters, reducing both energy costs and thermal output.
  • Internal turbulence is greatly reduced, allowing for more precise and reliable tracking. This allows for greater areal density.
  • The lower power requirement and internal turbulence allows more platters and heads to be added in the same volume of space.
  • The completely sealed environment eliminates reliability issues that can occur if breather filters get clogged up with dirt.

The only things stopping helium-filled drives from becoming mainstream is the relatively high cost of helium, and the difficulty in sealing the drive.


Media Caching Technology

This feature was mentioned only perfunctorily in the Western Digital press release, which led many writers to assume that they added a NAND flash cache, like the ones used in SSHDs (examples : 4TB WD Blue SSHD, 1TB WD Blue SSHD). Unfortunately, that’s not true.

The media caching technology used in the WD Gold datacenter drives are also a HGST technology, like HelioSeal. It doesn’t actually use any additional components, just the SDRAM cache and the hard disk drive platters. This is how it works :

  • Small media cache areas are created in regular intervals across the platter. These are only visible to the drive controller, and are hidden to the computer and operating system.
  • Data that are written to the SDRAM cache are combined and regularly written down to the nearest media cache areas at a higher internal queue depth.
  • These dispersed media caches boost write performance by greatly reducing head movements as data is written to the drive.
  • The write data is simultaneously de-staged, which eliminates burst activity and their impact on reads from the platter.
  • In the event of a sudden power-off event, the media cache areas can quickly restore the SDRAM cache.

Generally, the media caching technology increases random write performance with a slight boost in read performance.
