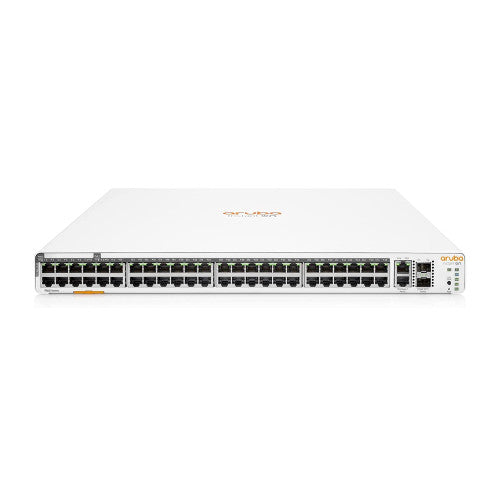

Aruba JL809A#ABA Instant On 1960 48-Port Gb 40P Class 4 PoE|8P Class 6 PoE Smart Switch(600W)-48x1G|2X SFP+|2X10 GBase-T

Ports:

48 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE (Type 3), 2 x 10Gb Ethernet (RJ45) (Uplink), 2 x 10Gb SFP+ (Uplink)

Layer Services Supported:

Layer 2 Support

Supported Protocols:

Auto-MDIX/MDI, Auto-VoIP, IGMP Snooping, IPv4, IPv6, Link Aggregation, RADIUS, SNMPv1, SNMPv2c, SNMPv3

Layer Services Supported Layer 2 Support Supported Protocols Auto-MDIX/MDI Auto-VoIP IGMP Snooping IPv4 IPv6 Link Aggregation RADIUS SNMPv1 SNMPv2c SNMPv3 MAC Address Table Size:

16K

Security Features:

DoS Attack Prevention, RADIUS Authentication

Static Routes:

32

Supported IEEE Standards:

802.1q/p, 802.3, 802.3ab, 802.3at, 802.3bt, 802.3u

Latency:

1.1 to 4.4 µs

Forwarding Rate:

131 Mpps

Switching Bandwidth:

176 Gb/s

CPU:

800 MHz Cortex A9 Single-Core

Power Draw:

760.00 W (Max), 100.00 W (Idle)

Current:

0.4 to 1.1 A

AC Input Power:

100 to 240 VAC, 50 / 60 Hz

PoE Power Budget:

600 W

PoE per Port:

30 to 60 W

Power Supply Type:

Internal

Operating Temperature:

32 to 104°F / 0 to 40°C
