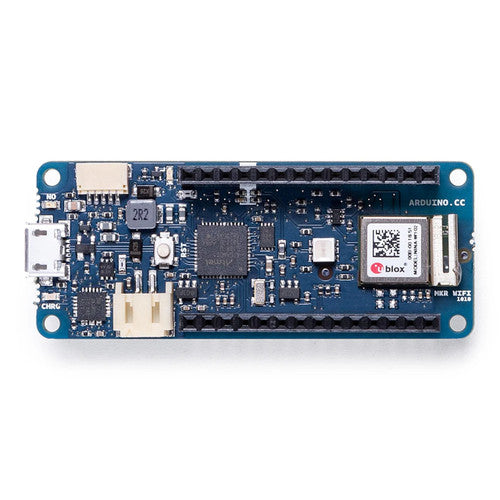

Arduino MKR WiFi 1010 WiFi-based IoT applications, micro USB connection preceding boards ABX00023

(No reviews yet) Write a Review
$38.60
MPN
ABX00023
UPC:
763004920025
Weight:
1.00 LBS
Shipping:
Calculated at Checkout

Out of stock

MKR WiFi 1010 ABX00023

The Arduino MKR WiFi 1010 is the easiest point of entry to basic IoT and pico-network application design. Whether you are looking at building a sensor network connected to your office or home router, orif you want to create a Bluetooth Low Energy device sending data to a cellphone, the MKR WiFi 1010 is your one-stop-solution for many of the basic IoT application scenarios.

The board's main processor is a low power Arm Cortex-M0 32-bit SAMD21, like in the other boards within the Arduino MKR family. The WiFi and Bluetooth connectivity is performed with a module from u-blox, the NINA-W10, a low power chipset operating in the 2.4GHz range. On top of those, secure communication is ensured through the Microchip ECC508 crypto chip. Besides that, you can find a battery charger, and a directional RGB LED on-board.

Microcontroller:
SAMD21 Cortex-M0+ 32bit low power ARM MCU
Radio module:
u-blox NINA-W102
Board Power Supply (USB/VIN):
5V
Secure Element:
ATECC508
Supported Battery:
Li-Po Single Cell, 3.7V, 1024mAh Minimum
PWM Circuit Operating Voltage:
3.3V
Digital I/O Pins:
8
PWM Pins:
13 (0 .. 8, 10, 12, 18 / A3, 19 / A4)
UART:
1
SPI:
1
I2C:
1
Analog Input Pins:
7 (ADC 8/10/12 bit)
Analog Output Pins:
1 (DAC 10 bit)
External Interrupts:
10 (0, 1, 4, 5, 6, 7, 8,9, 16 / A1, 17 / A2)
DC Current per I/O Pin:
7 mA
CPU Flash Memory:
256 KB (internal)
SRAM:
32 KB
EEPROM:
no
Clock Speed:
32.768 kHz (RTC), 48 MHz
LED_BUILTIN:
6
USB:
Full-Speed USB Device and embedded Host
