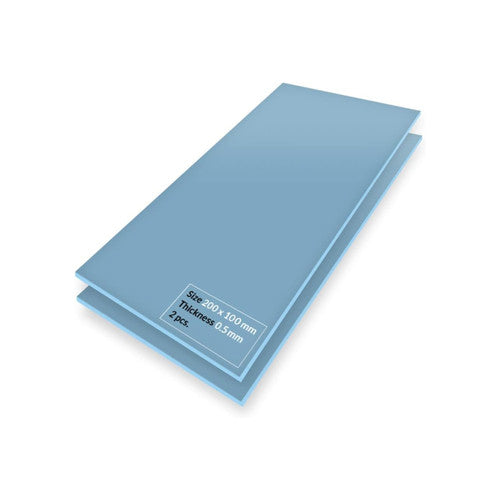

THERMAL PAD 200 x 100 x 0.5 mm, 2 Pieces ACTPD00058A

The ARCTIC TP-3 is a premium performance thermal pad that comes in a size of 200 x 100 x 0.5 mm and is available in a pack of 2 pieces. The thermal pad is made of silicone and a special filler, which allows it to outperform high-performance pads, especially when dealing with height differences of closely spaced chips due to manufacturing tolerances. The TP-3 offers excellent thermal conductivity despite its extremely low hardness and is particularly soft, making it suitable for different chip heights and possible tolerances. The thermal pad acts as a perfect gap filler, bridging uneven surfaces and air gaps without stressing sensitive and protruding components.

The ARCTIC TP-3 is electrically insulating, non-adhesive, and easy to handle, ensuring optimal and safe heat transfer in various applications. It can be easily cut to size if needed, and its good compression properties contribute to its high performance as a heat conductor. The TP-3 is suitable for versatile applications, including heat-conducting, vibration-damping, and moldable uses.

HIGH PERFORMANCE — VERY SOFT

Based on silicone and a special filler, TP-3 outperforms high-performance pads, especially when height differences of closely spaced chips typically occur due to manufacturing tolerances. The TP-3 offers excellent thermal conductivity despite extremely low hardness.

MINIMIZATION OF THERMAL RESISTANCE

The thinner the pad, the lower the thermal resistance. The TP-3 pad with a thickness of 0.5 mm can easily be compressed to 0.3 mm and thus compensate for height differences between various components of up to 0.2 mm. Please note that due to the extremely low hardness, the installation of the 0.5 mm pad requires extra care. Please refer to the user manual.

VERSATILE APPLICATIONS

Heat-conducting, vibration-damping, mouldable, electrically insulating — safe and easy to use. Thanks to its good compression properties, the soft heat conduction pad is particularly gentle on components and at the same time a good heat conductor. In addition to the standard format for M.2, the TP-3 is available in various sizes and thicknesses, which can be easily cut to the desired shape and size. This makes it ideal for RAMs, chipsets, and ICs of all kinds, which are used in PCs, laptops, consoles, graphics cards, and electronic devices in general.

SAFE HANDLING

The ARCTIC TP-3 is electrically insulating, non-adhesive, and easy to handle. This means that optimal and safe heat transfer can be ensured in many application areas.

BRIDGING GAPS

The TP-3 is softer than conventional pads and therefore particularly suitable for different chip heights and possible tolerances. Thanks to their good compressibility properties, the thermal pads act as the perfect gap filler and bridge uneven surface and air gaps without stressing sensitive and protruding components.

Colour:: Blue
Hardness:: 55 Shore OO
Continuous Use Temperature:: -40~150 °C
Specific Gravity:: 3.4 g/cm
Dielectric Constant @1MHz:: 5.19
Volume Resistance:: 2.69 x 1012 Ω-cm
Flammability Rating:: UL 94 V-0
