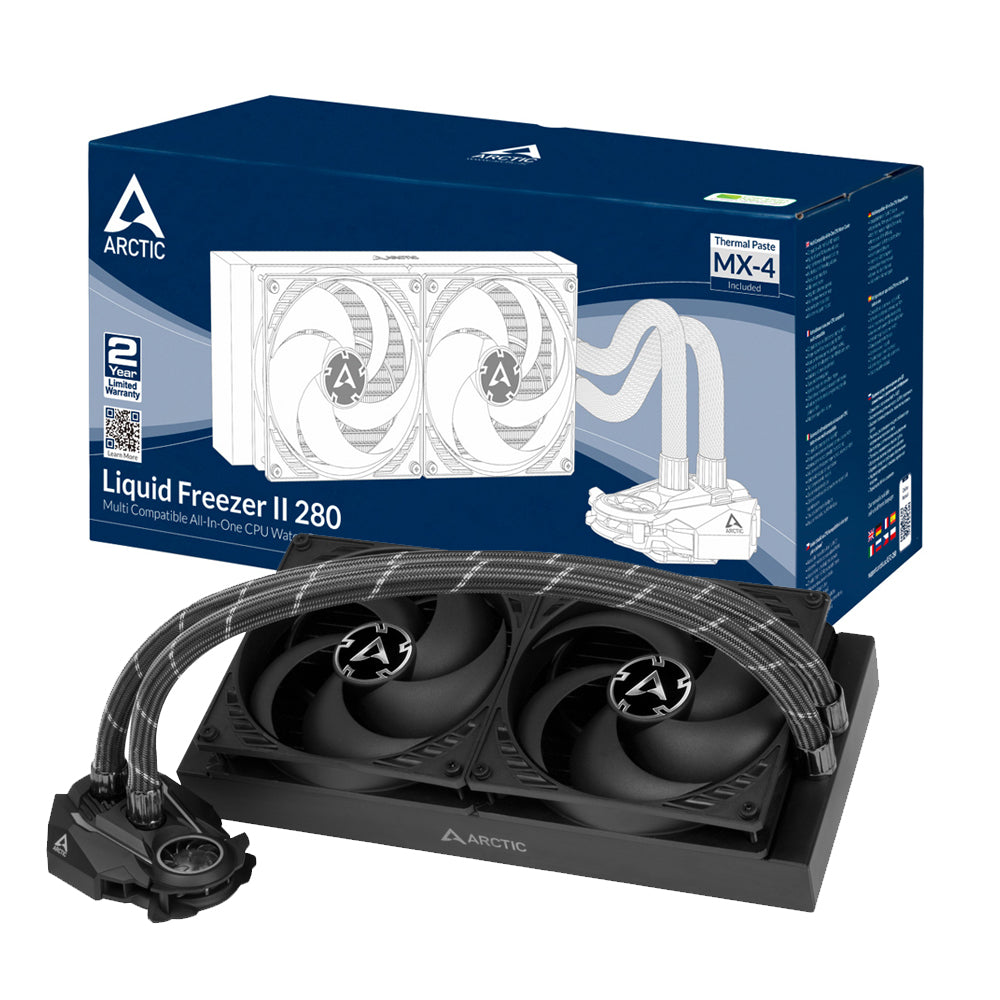

Arctic ACFRE00066B Liquid Freezer II 280 Multi Compatible All-in-One CPU Water Cooler

Arctic

1 review Write a Review
SKU:
CCACFRE00066B
MPN: ACFRE00066B
$126.00
UPC:
4895213701976
Condition:
New
$126.00

Description

 Arctic ACFRE00066B Liquid Freezer II 280 Multi Compatible All-in-One CPU Water Cooler


SECOND GENERATION PRICE-PERFORMANCE-CHAMP»

(ALLROUND-PC.COM)

The Liquid Freezer II has been tested numerous times by independent reviewers and has been awarded for its performance, price and quiet operation. Dabei übertrifft er alle Erwartungen und setzt neue Maßstäbe im Bereich der Kompaktwasserkühlung. It exceeds all expectations and has set new standards in the field of compact water cooling. The Liquid Freezer II was also awarded the "European Hardware Award 2020" for the best liquid cooler in the 240 variant.


OUTSTANDING PERFORMANCE

The all-in-one cooling handles the entire cooling requirements - even of the most powerful processors from Intel® and AMD®. It performs effortlessly with over 200 W of heat to be dissipated, which is why your CPU can be kept cool even in extreme overlocking. When it comes to competitive products from leading cooler manufacturers, the Liquid Freezer II leaves them behind in terms of both performance and noise level.


EFFICIENT, IN-HOUSE DEVELOPED PUMP

Unlike many of our competitors, we went to great lengths to develop the water pump. The result is greatly reduced humming and higher efficiency. Like the other components, the pump is also PWM controlled. This leads to a significantly lower noise level at low and typical loads, but also to much lower power consumption, with a maximum of of 0.8 W at no load, 2.3 W under typical load and a maximum of 4.3 W under full load for the entire AiO.


PREMIUM CLASS RADIATOR

Unlike most other all-in-one liquid cooling manufacturers, we rely on 38 mm thick radiators with a high fin density. This means that a larger amount of water can be used in the circuit, and the cooling surface can be significantly increased.

Water has a much higher heat capacity than aluminum or copper. This leads to a slower and up to 5 ° C lower temperature increase in the temporary turbo mode of modern CPUs.


SMOOTH VRM FAN

Small fans have a reputation for being particularly loud and not very durable. However, we have developed a quiet and durable diagonal fan especially for the Liquid Freezer II and are 100% convinced that this 40 mm fan is just as durable as our other case fans. In the unlikely event that it should fail, our customer service team will send you a replacement free of charge and easily, without a need to replace the entire unit.

The fan is PWM-controlled and can cool your voltage transformers and the base area almost inaudibly by up to 15 ° C. This is especially effective in overclocking scenarios, inadequate VRM cooling or in housings with poor airflow, thus permitting continuously high loads. If sufficient VRM cooling is available, it can be switched off at will.


HIGH QUALITY HOSES WITH INTEGRATED CABLE MANAGEMENT

The fiber-reinforced, long EPDM tubing of the Liquid Freezer II enables installation even in large cases and effectively prevents the cooling liquid from evaporating, so that you do not have to worry about refilling the compact water cooling system.

It also hides the cables of your radiator fans thanks to sophisticated cable management. So you only have to connect a plug to the mainboard, saving valuable time during installation. In the end, you won't need to hide any more cables and your view is reduced to just the essentials.


FAN OPTIMIZED ON STATIC PRESSURE

The popular P-fans are already installed on the compact water cooling from the factory, lending the following advantages:

• High static pressure for improved cooling performance 2,2 mm H2O

• Extended speed range 200 - 1800 RPM

• Lower power consumption 0,08A

• Less vibration reduced by 95%

• Improved lifespan 10 year guarantee

• High quality fluid dynamic bearing

• PWM for synchronous pump/fan control

Specifications

Brand:
Arctic
Weight:
1.50 LBS
Brand:
Arctic
Model:
ACFRE00066B
AMD Socket::
AM4
Warranty::
2 Years
VRM Fan::
40 mm, 1000 – 3000 RPM
Pump::
800 – 2000 RPM
Power Consumption::
0,5 W – 2,7 W
Thermal Paste::
MX-4
Fan::
2x ARCTIC P14 – 140 mm Fan
Fan Speed::
200 – 1 700 RPM
Fan Bearing::
Fluid Dynamic Bearing
Noise Level::
0,3 Sone
Airflow::
72,8 CFM
Static Pressure::
2,4 mm H2O
Connector::
4-pin-Connector
